HELM SIDE-ACCESS DOOR
With the helm side-access door, docking is a breeze. The stainless side rails are split allowing you to seamlessly step from the helm through to the jetty to begin securing your Nimbus in its berth

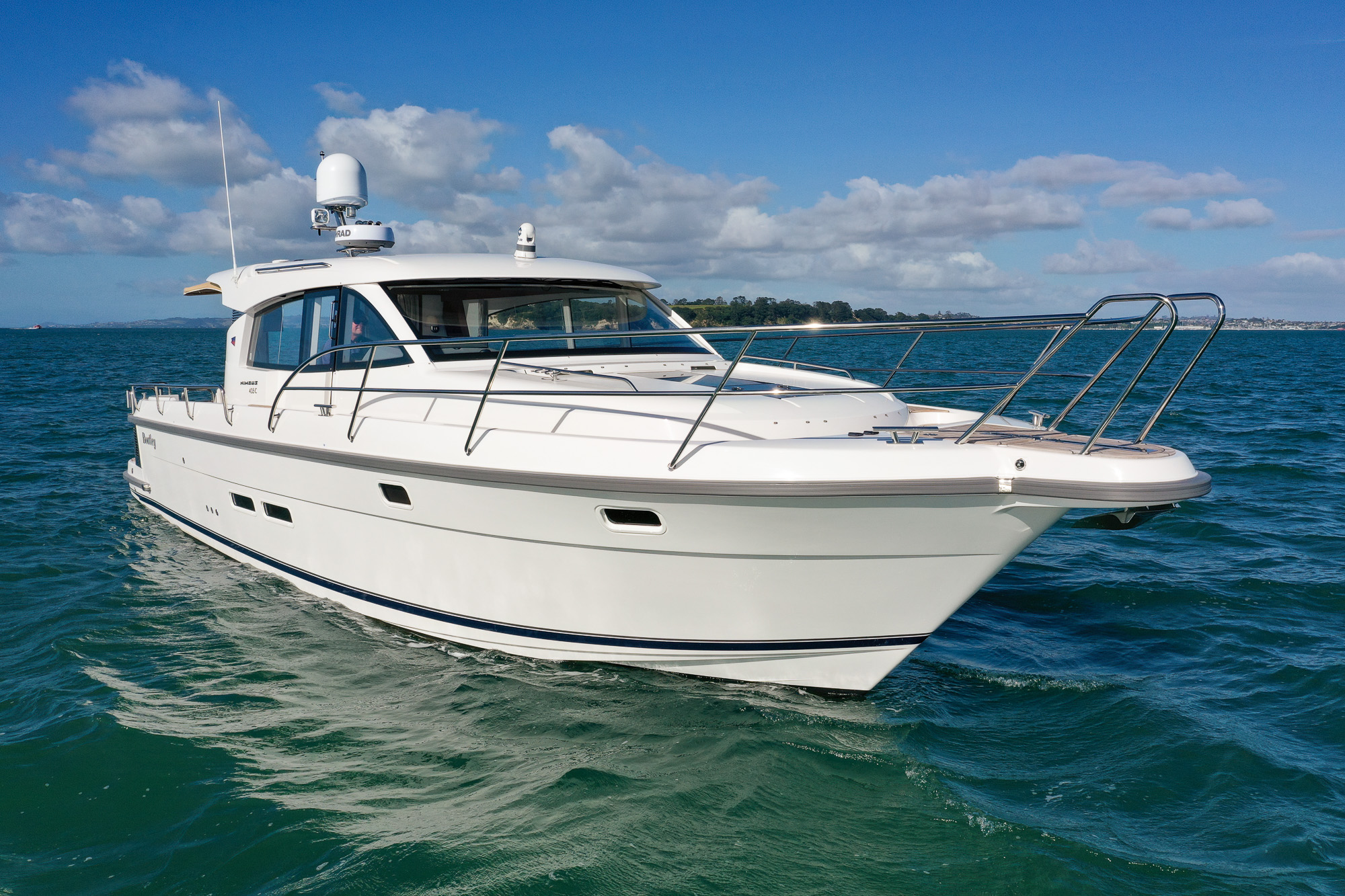

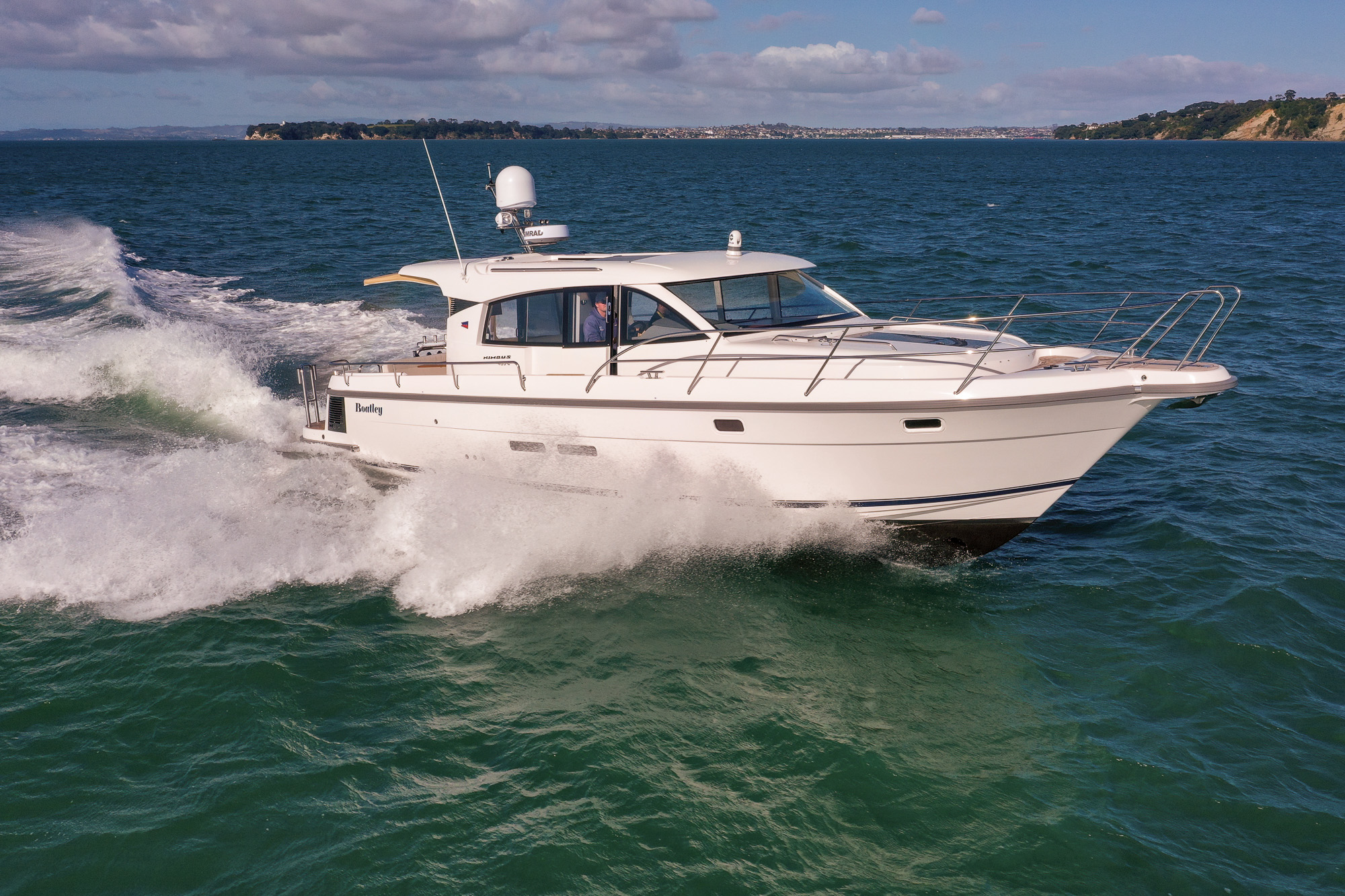

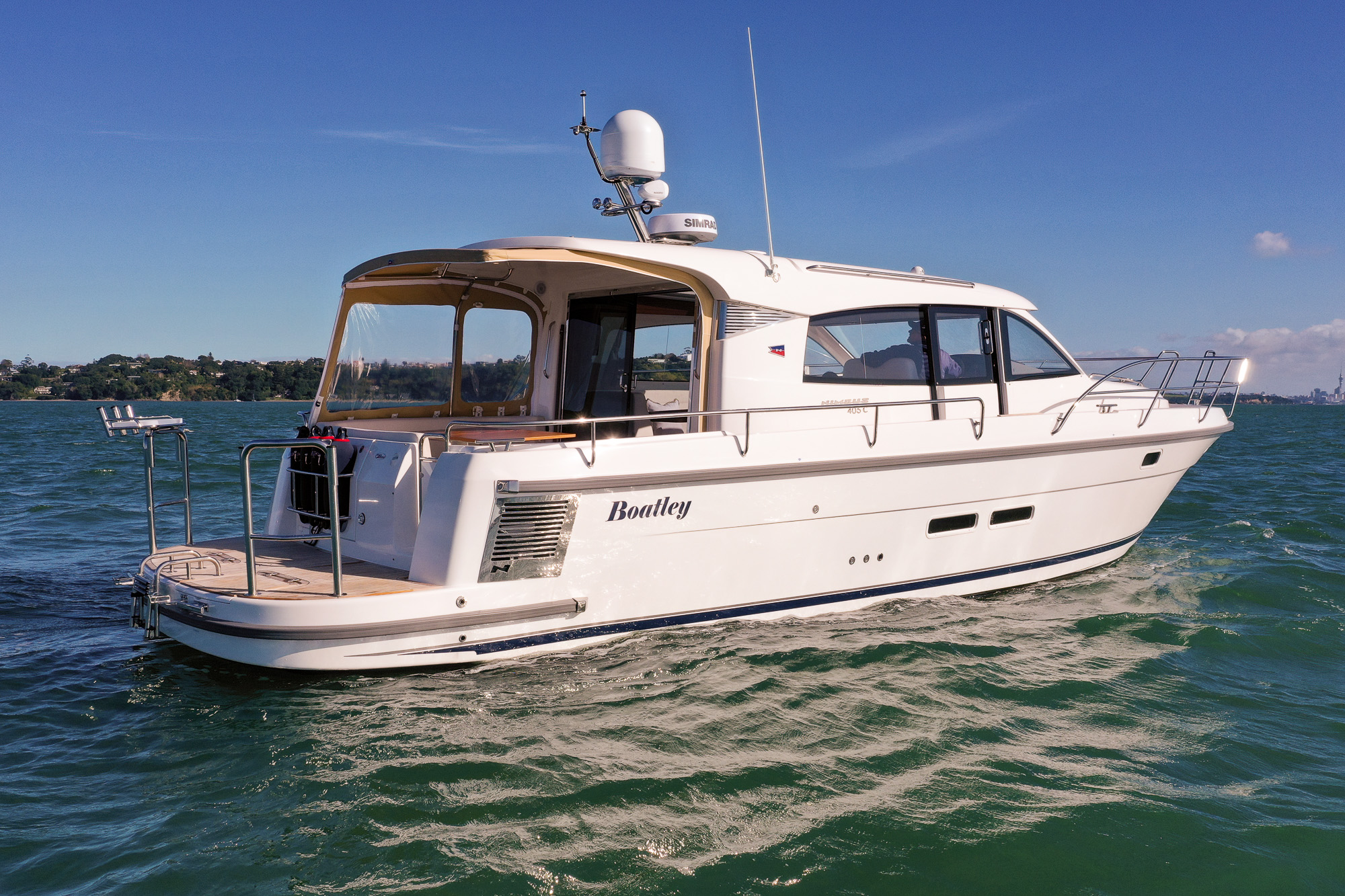

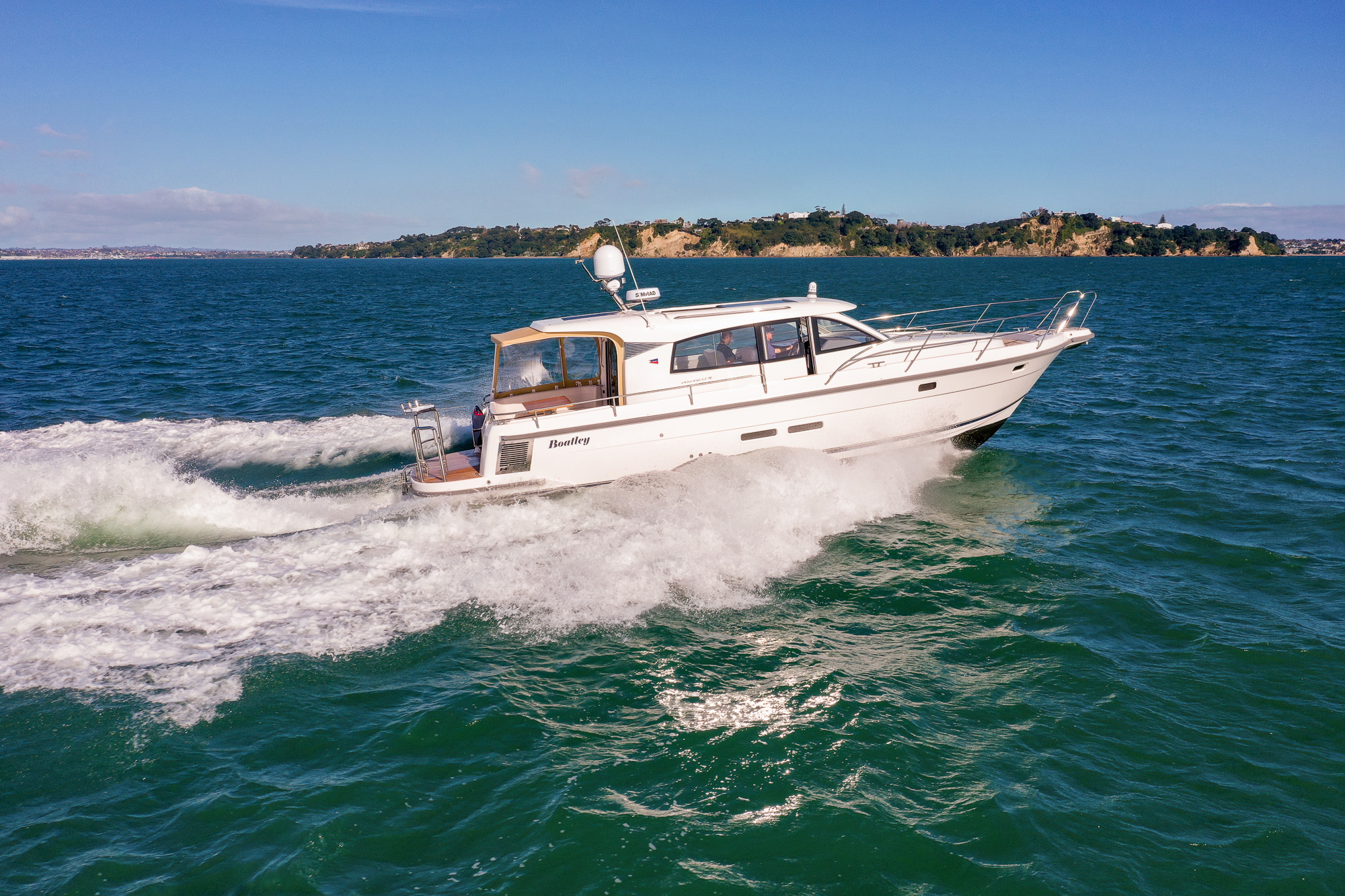

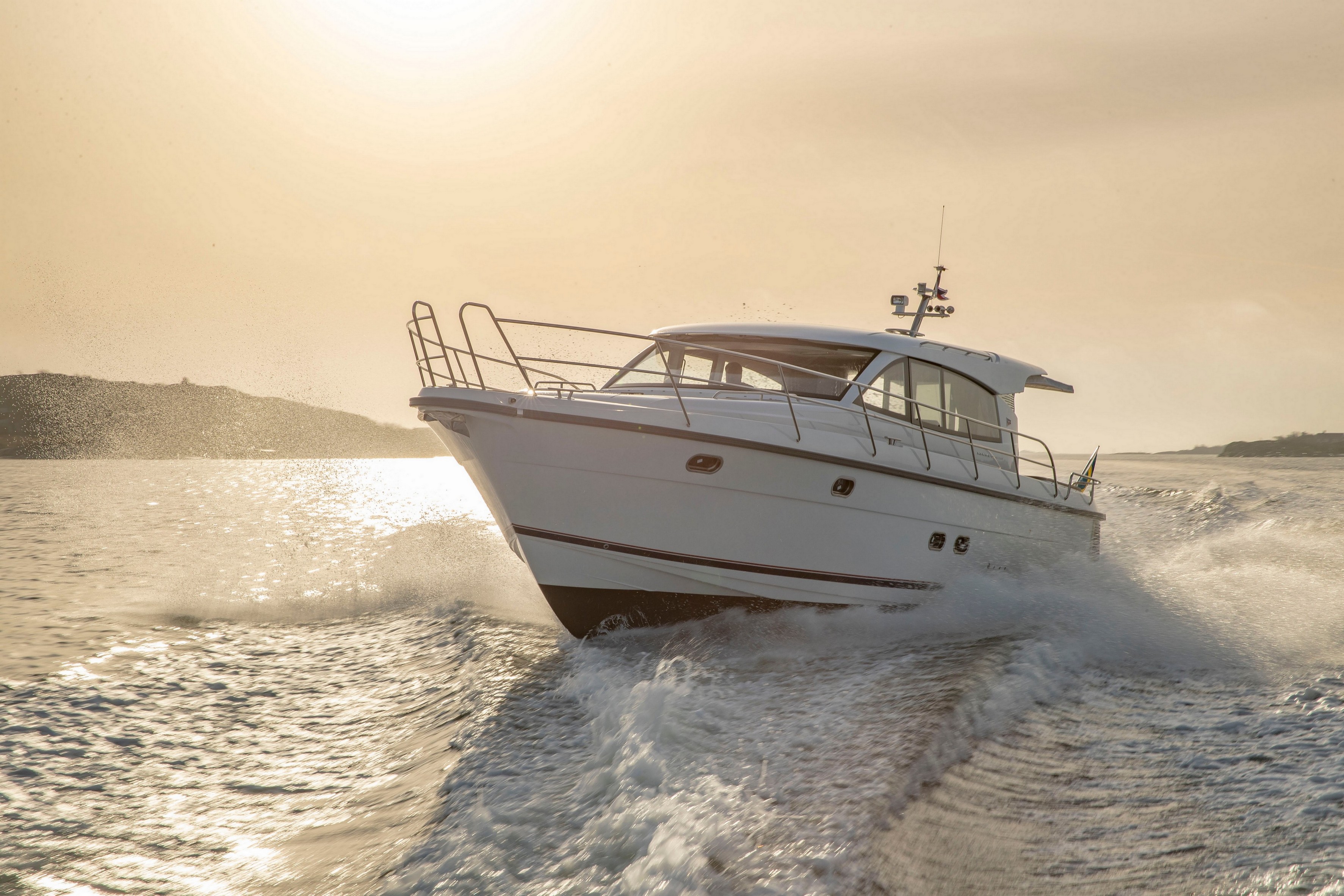

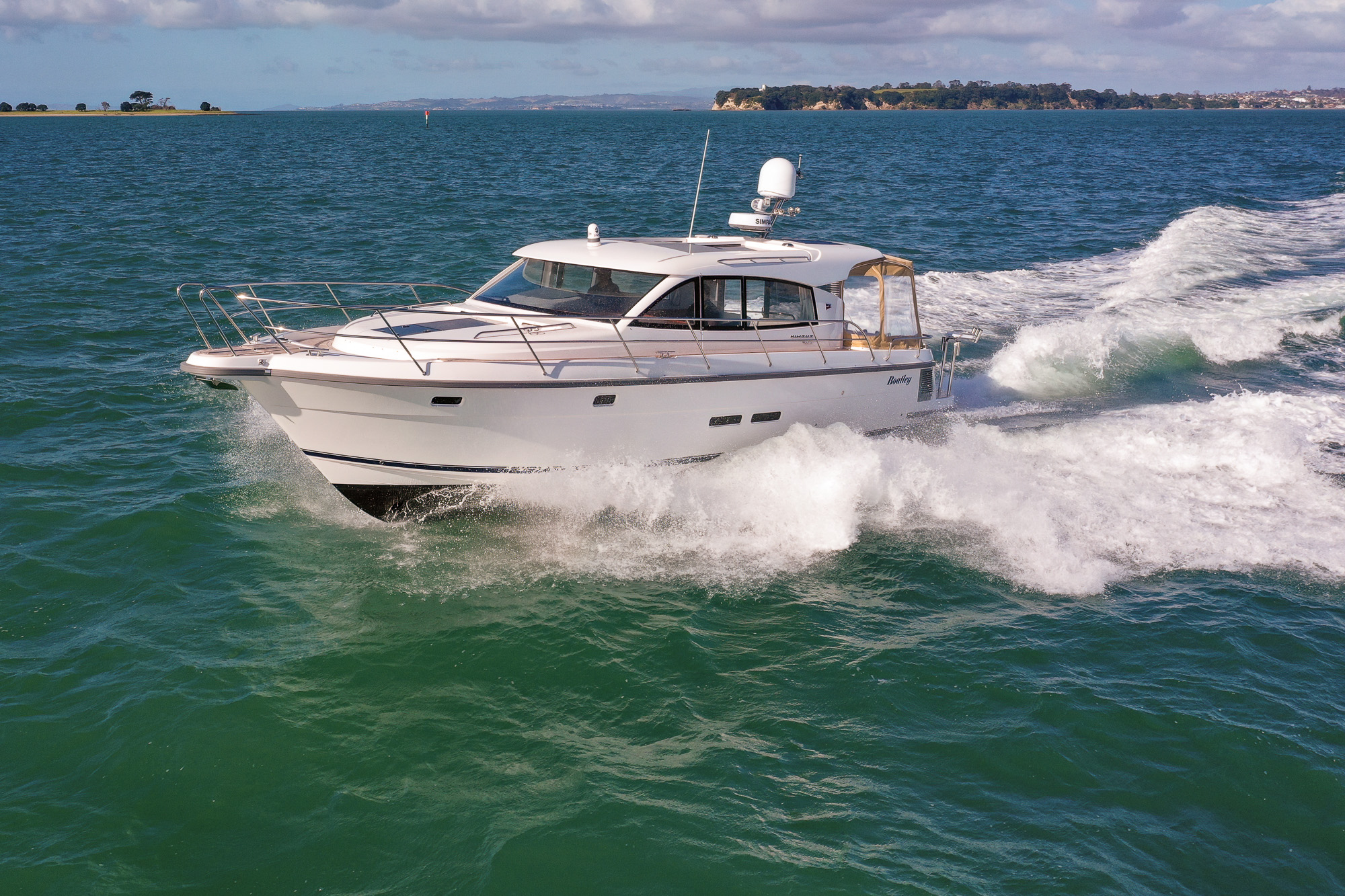

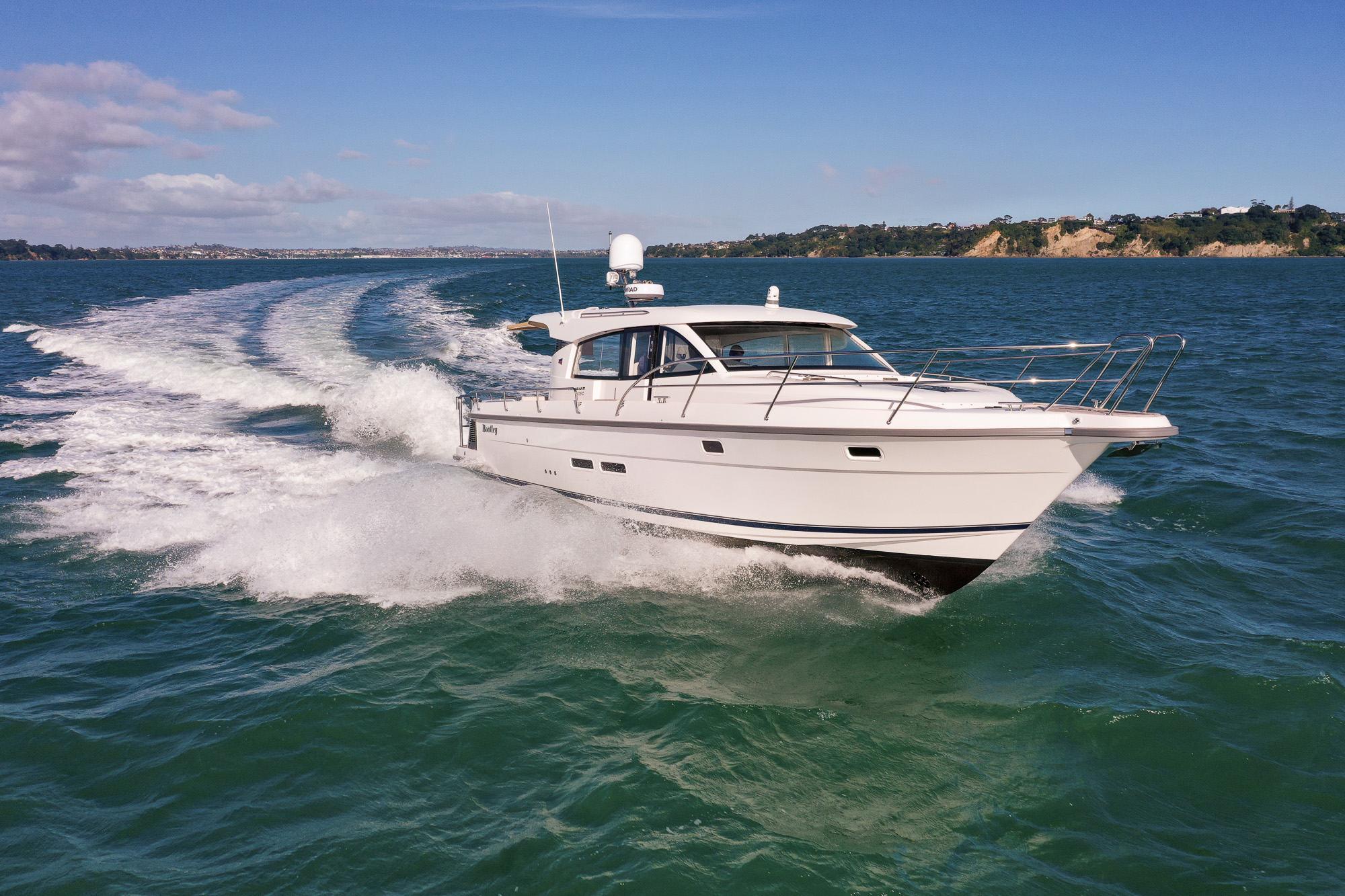

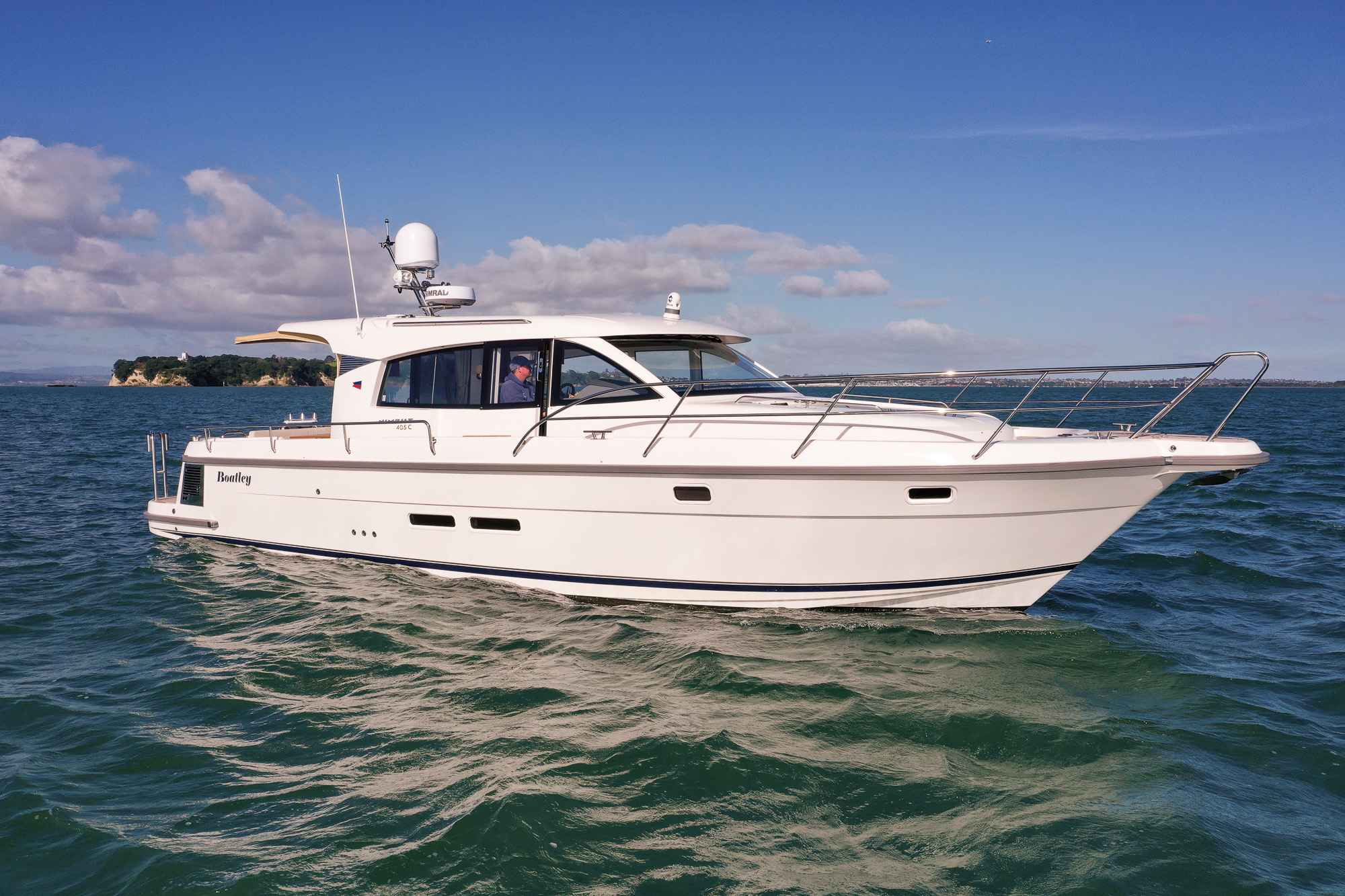

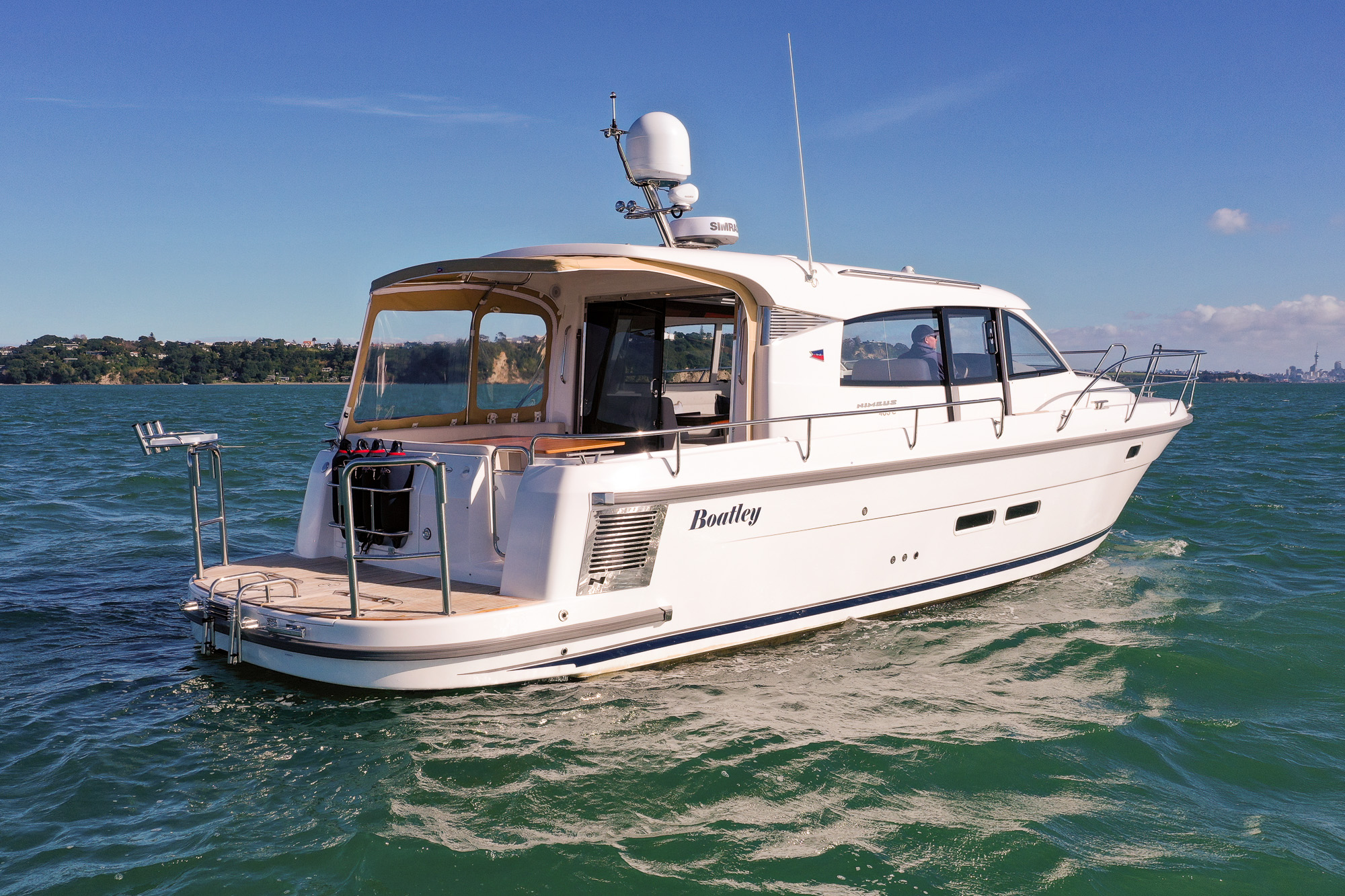

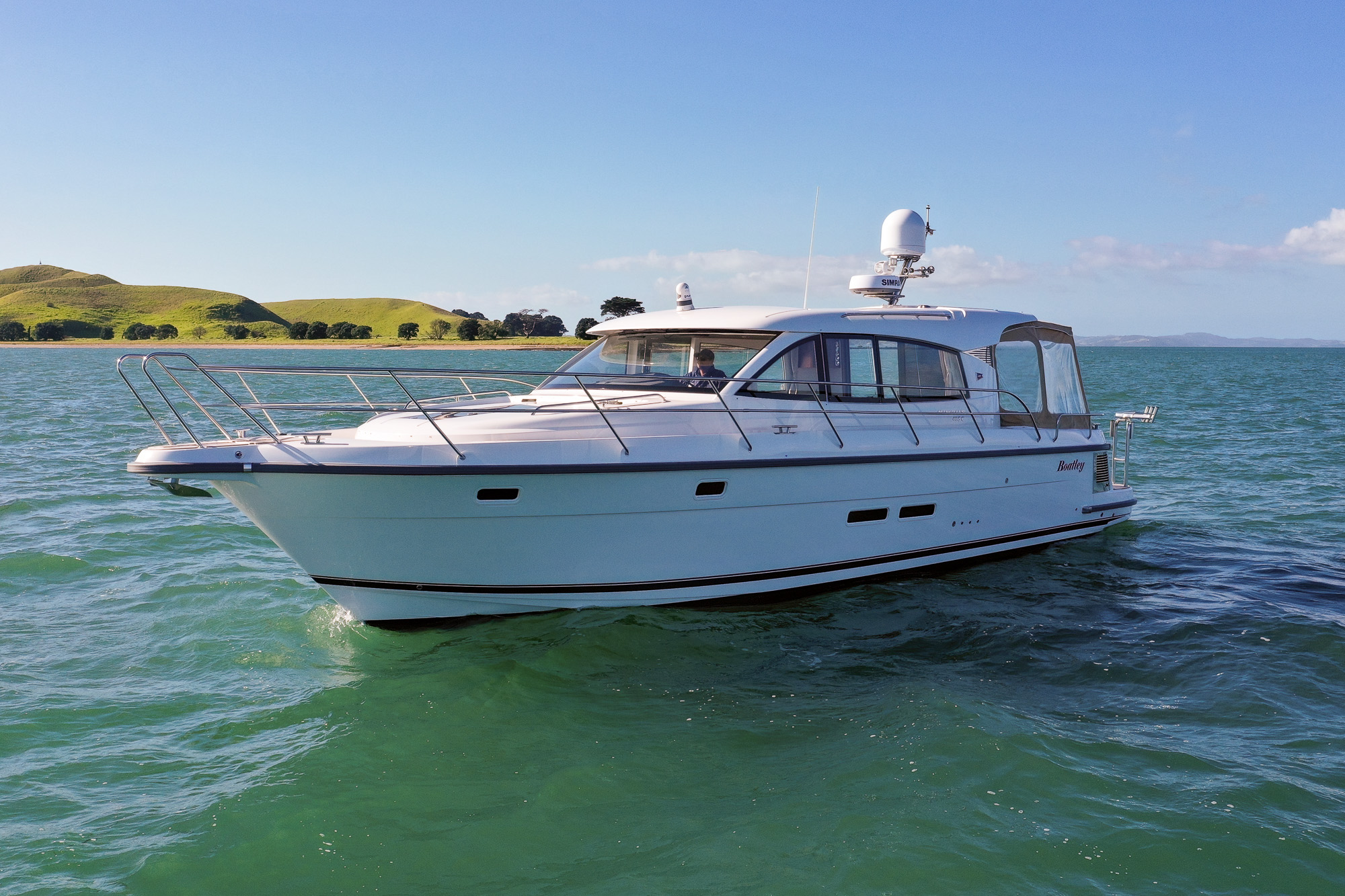

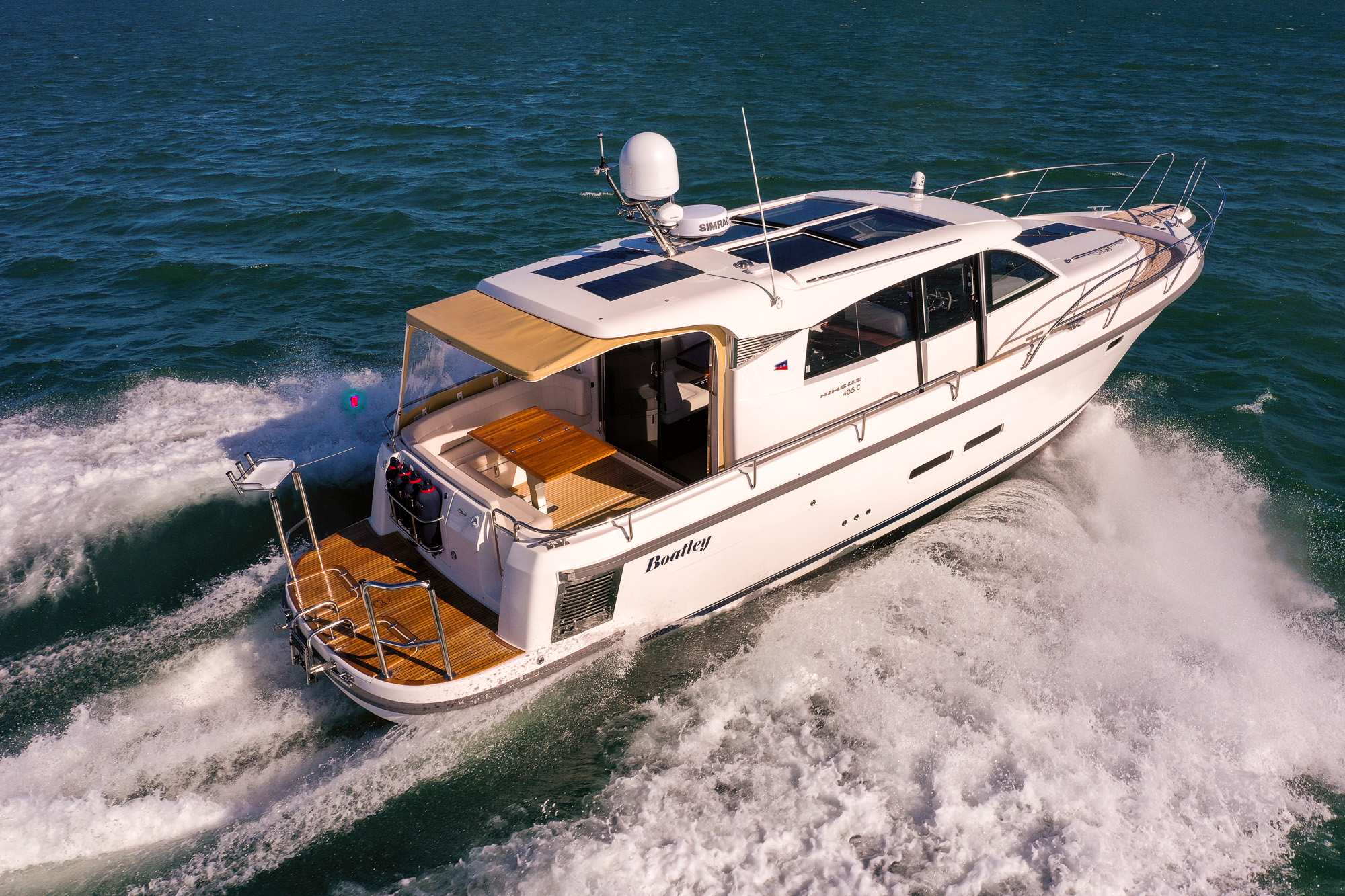

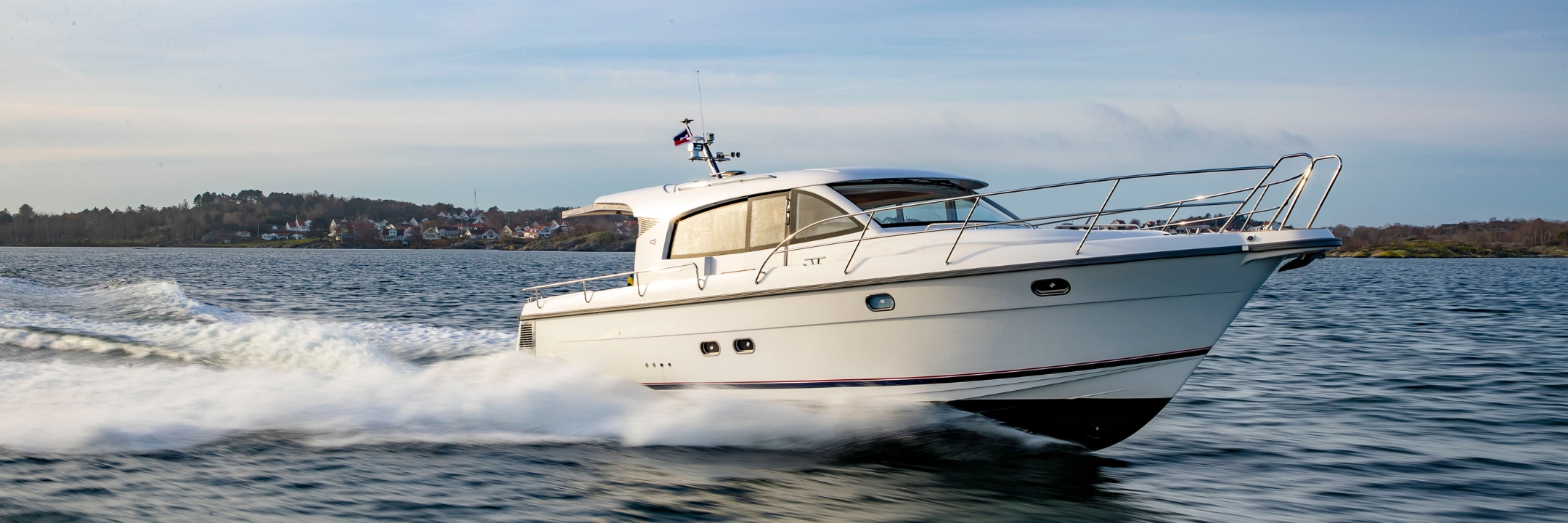

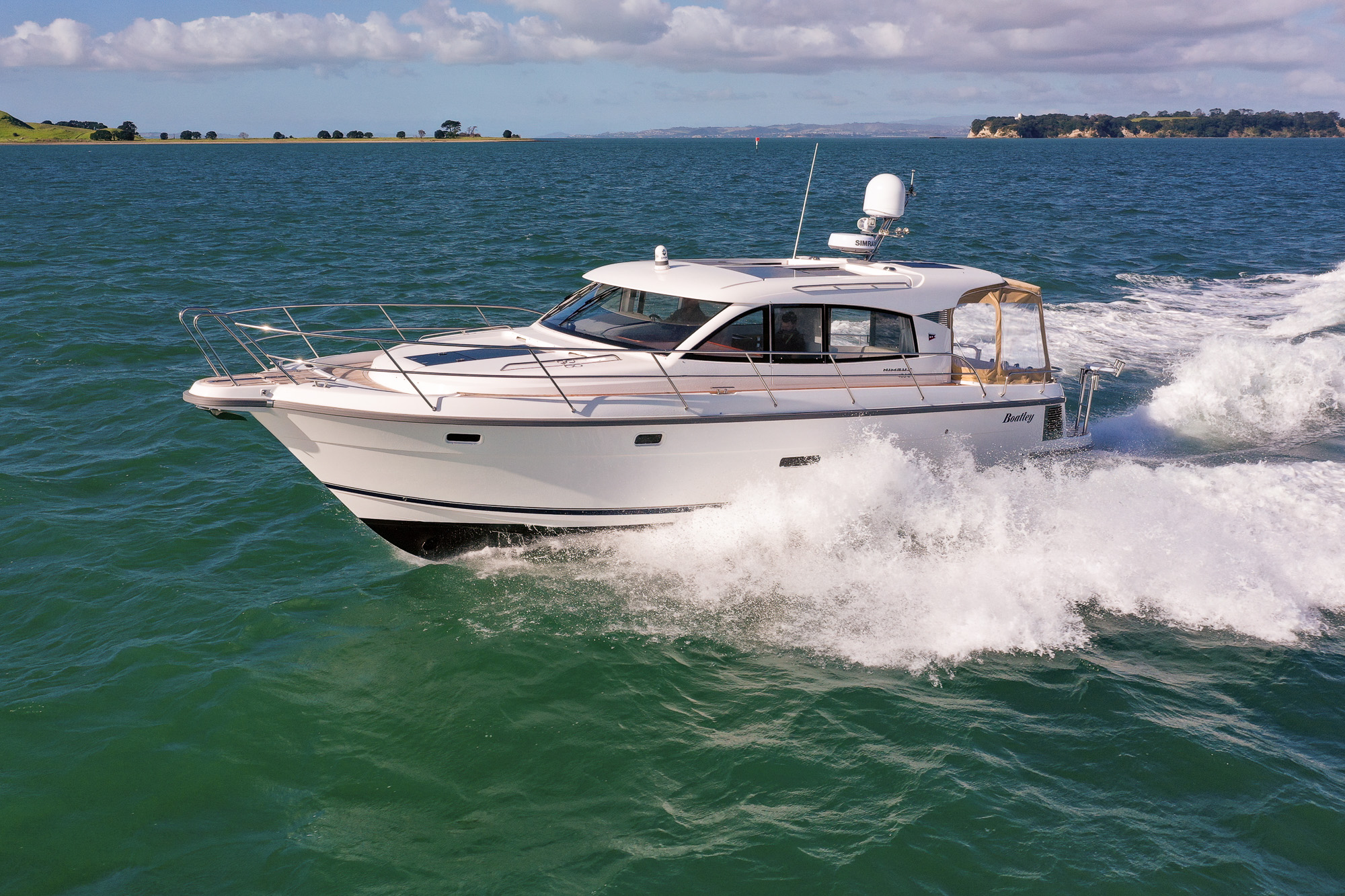

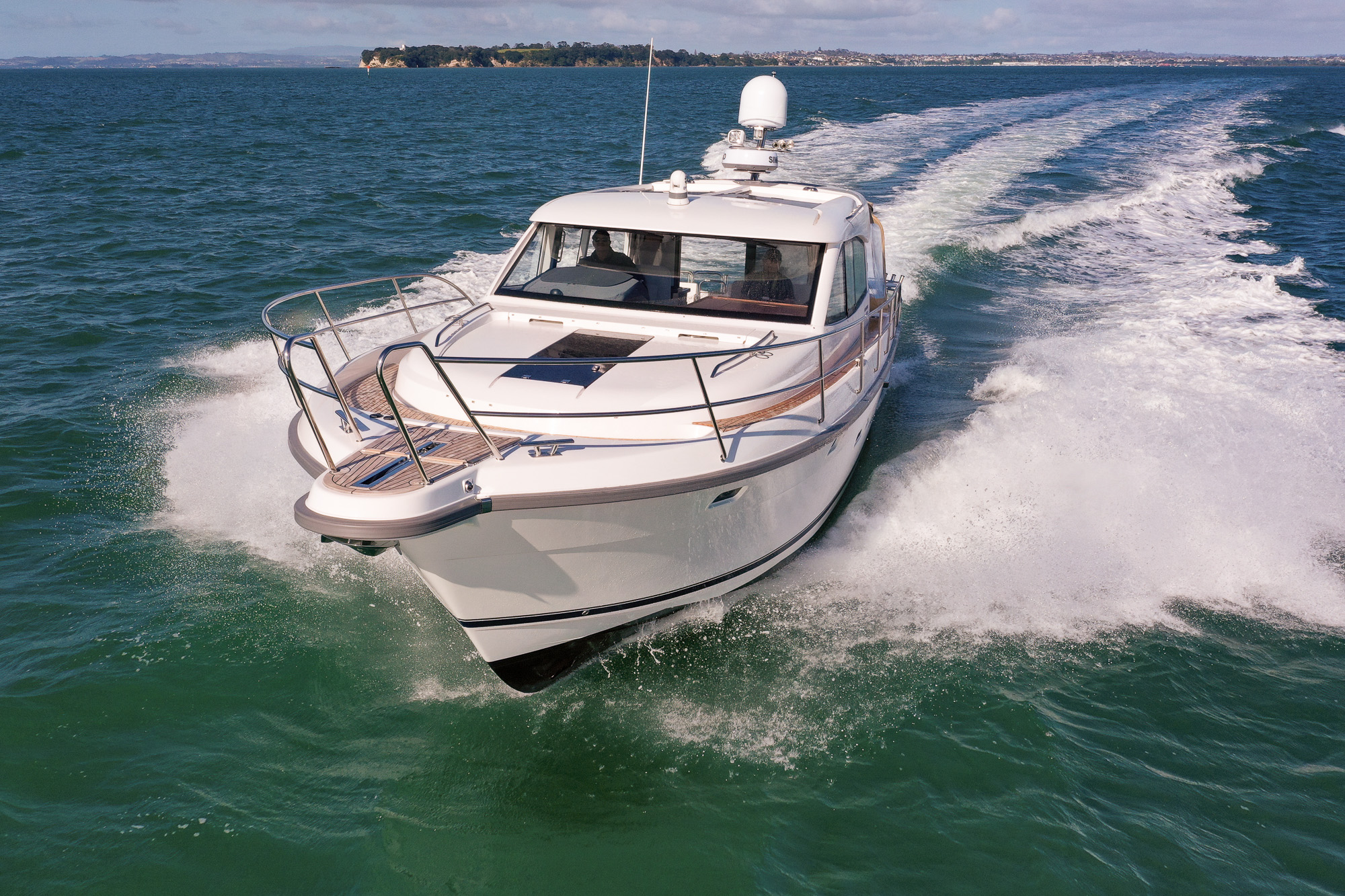

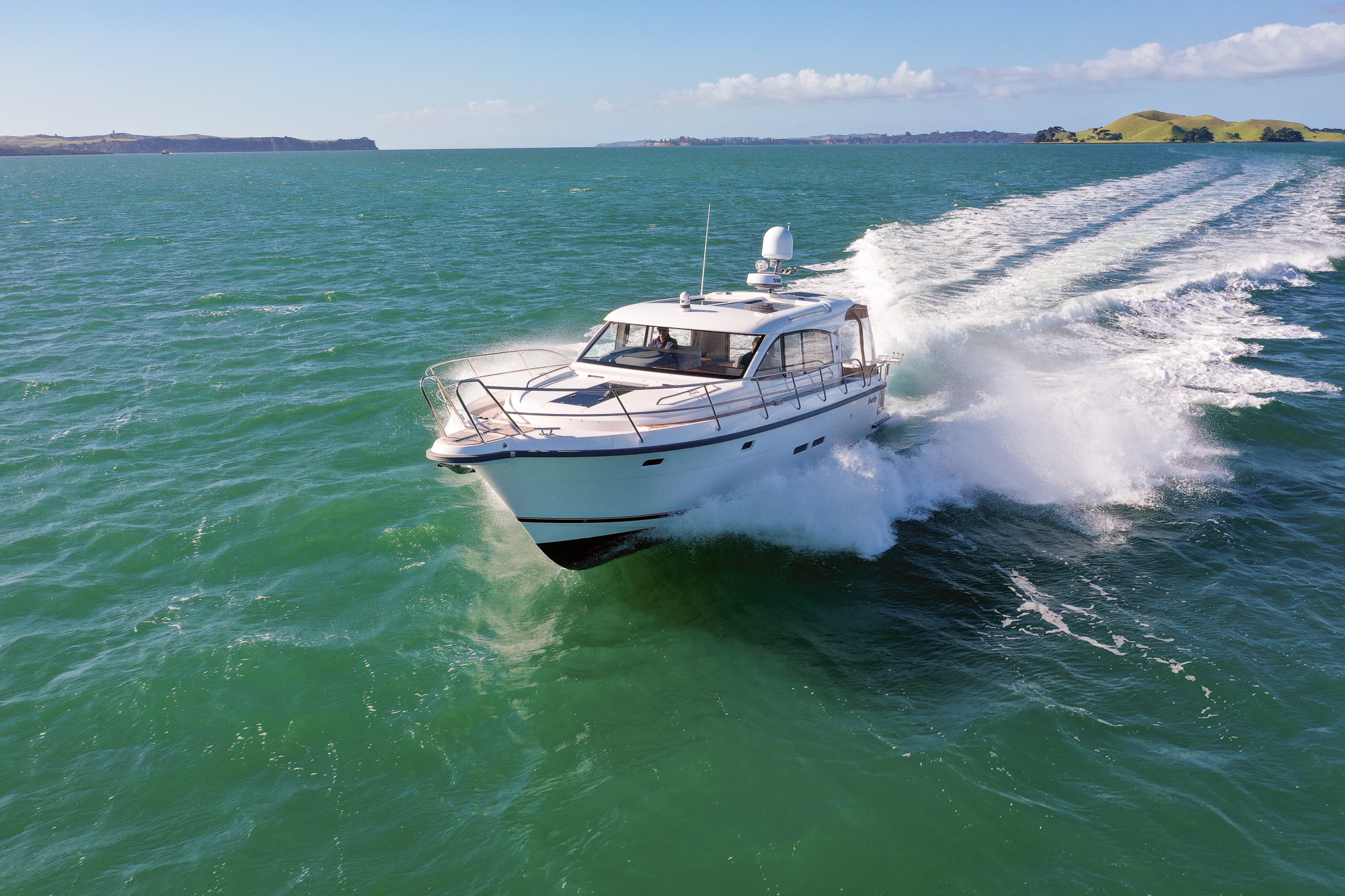

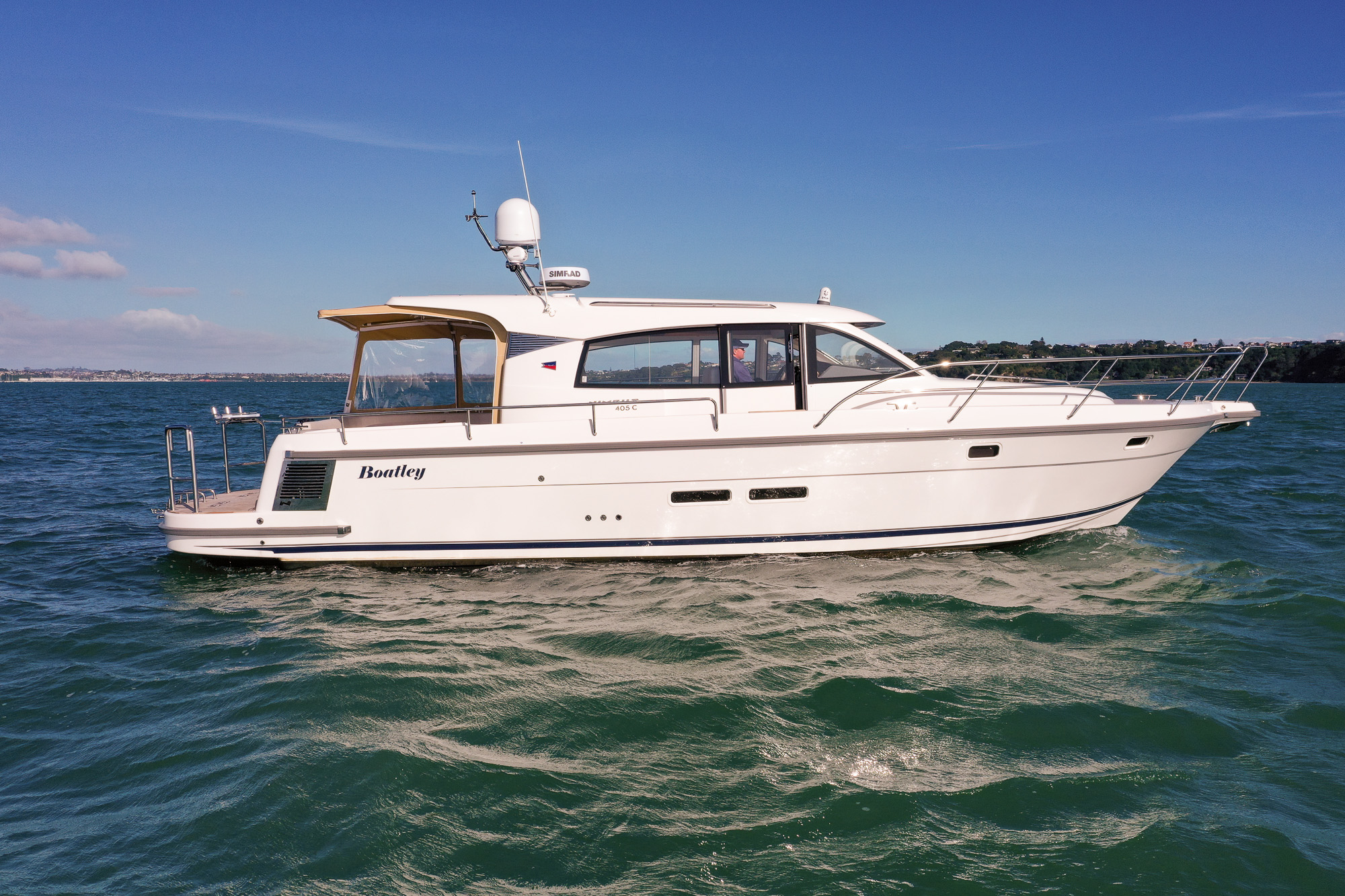

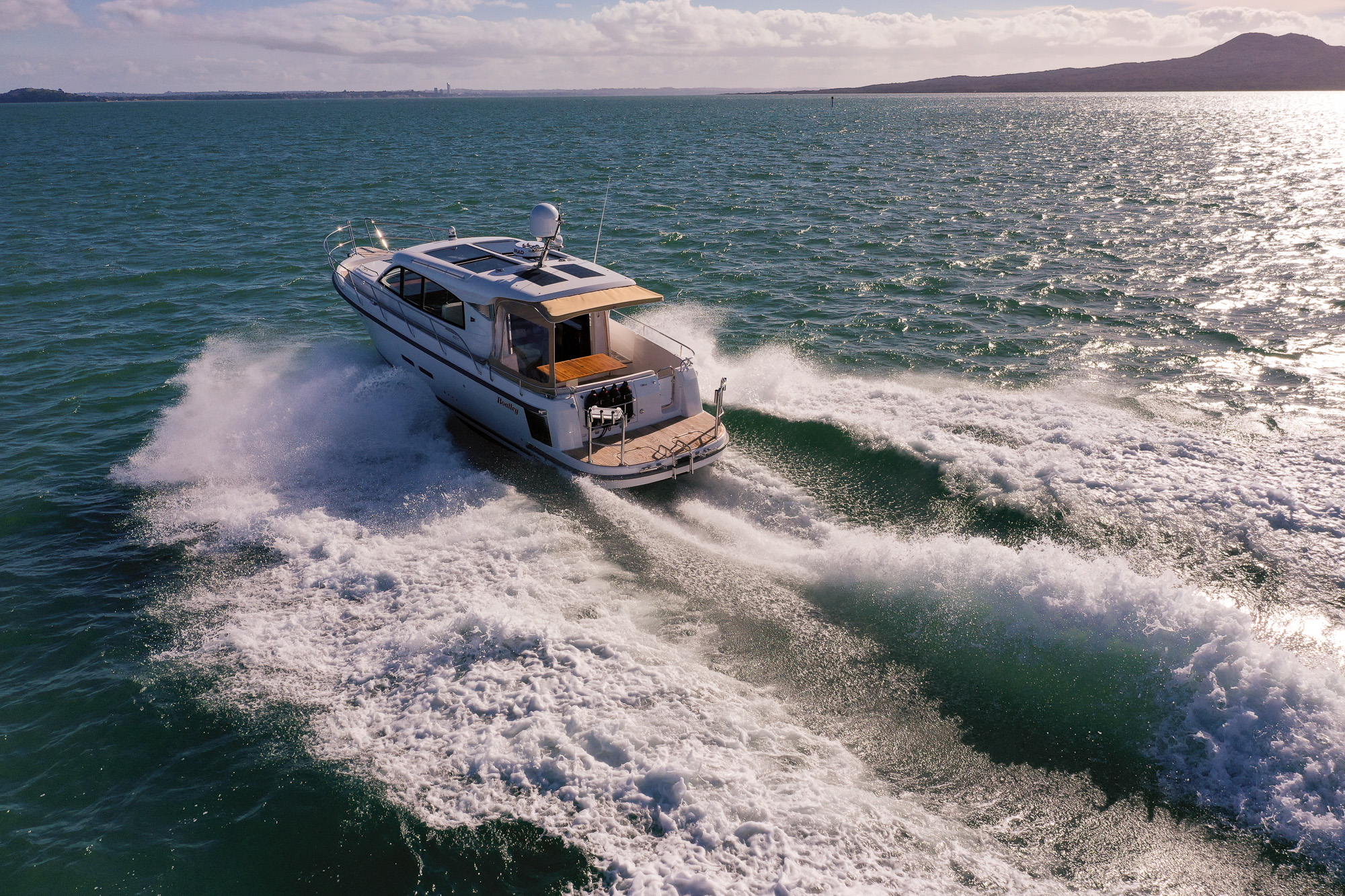

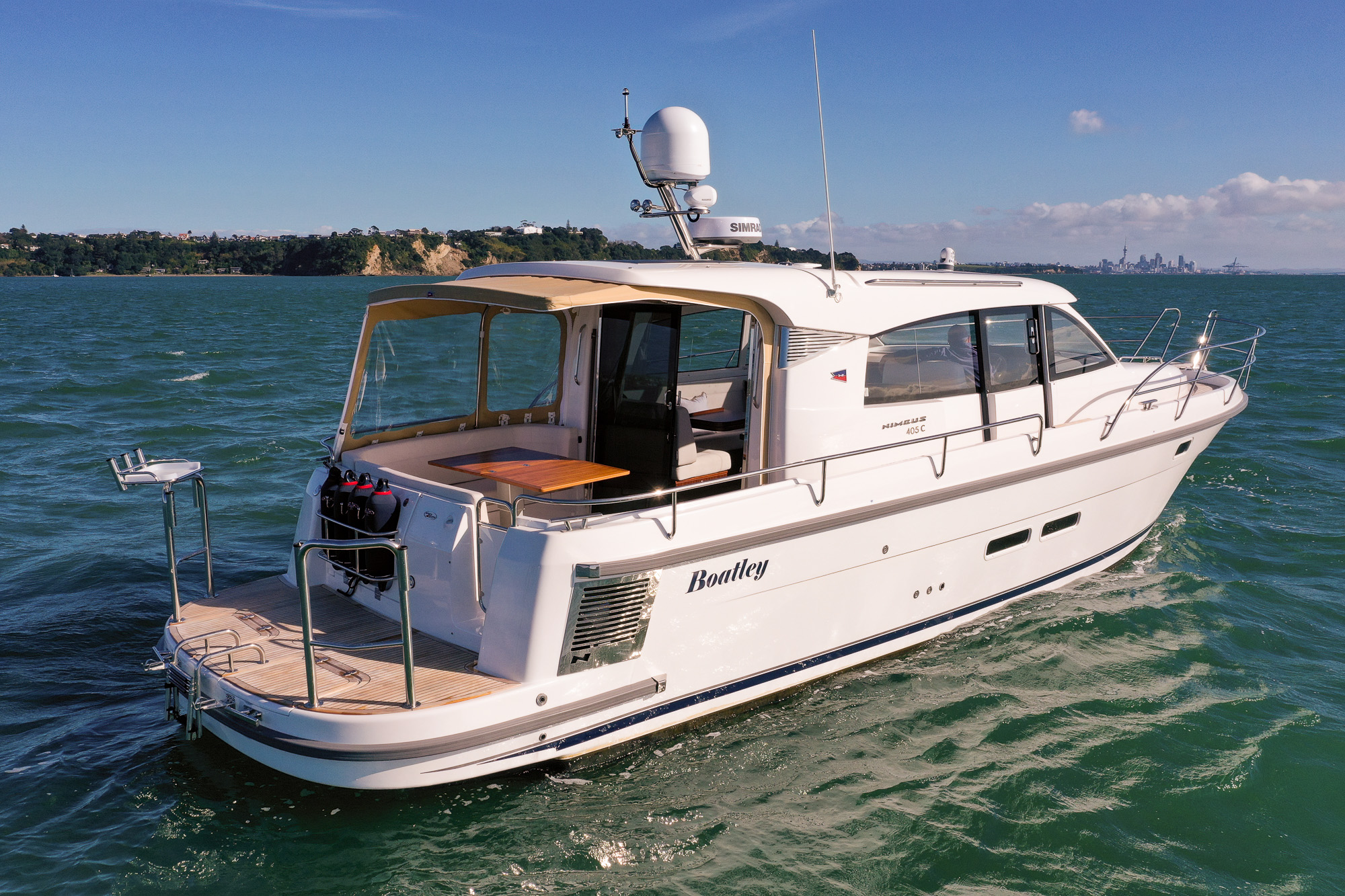

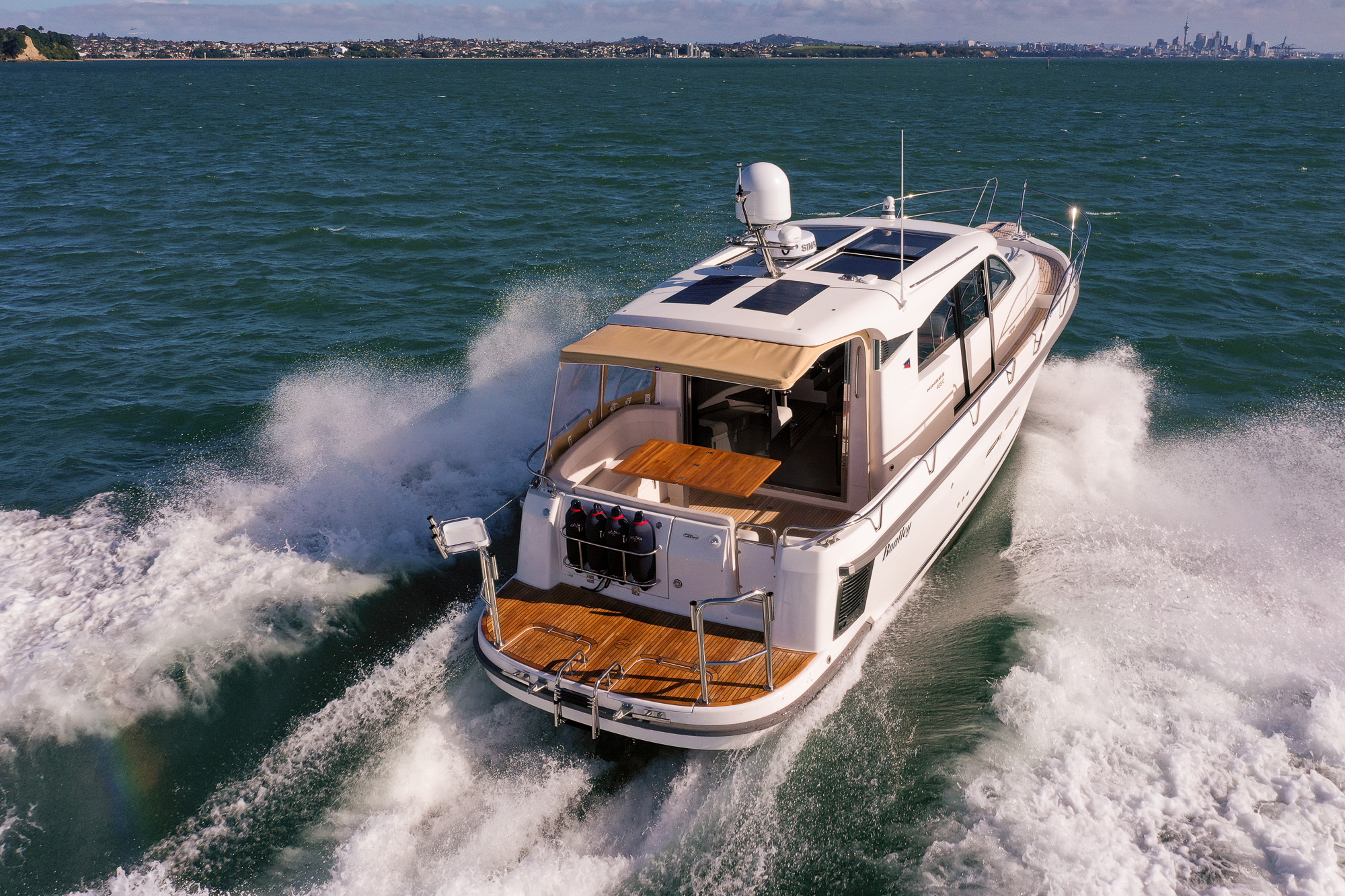

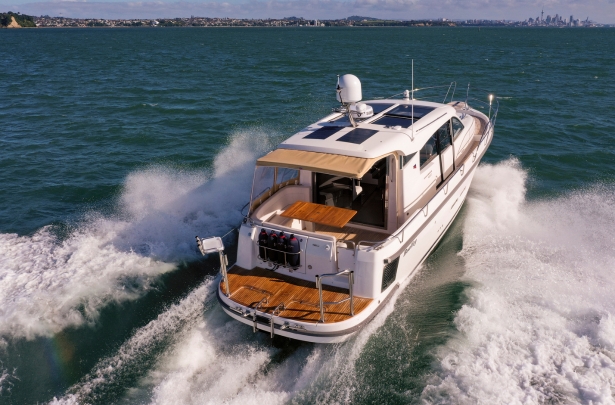

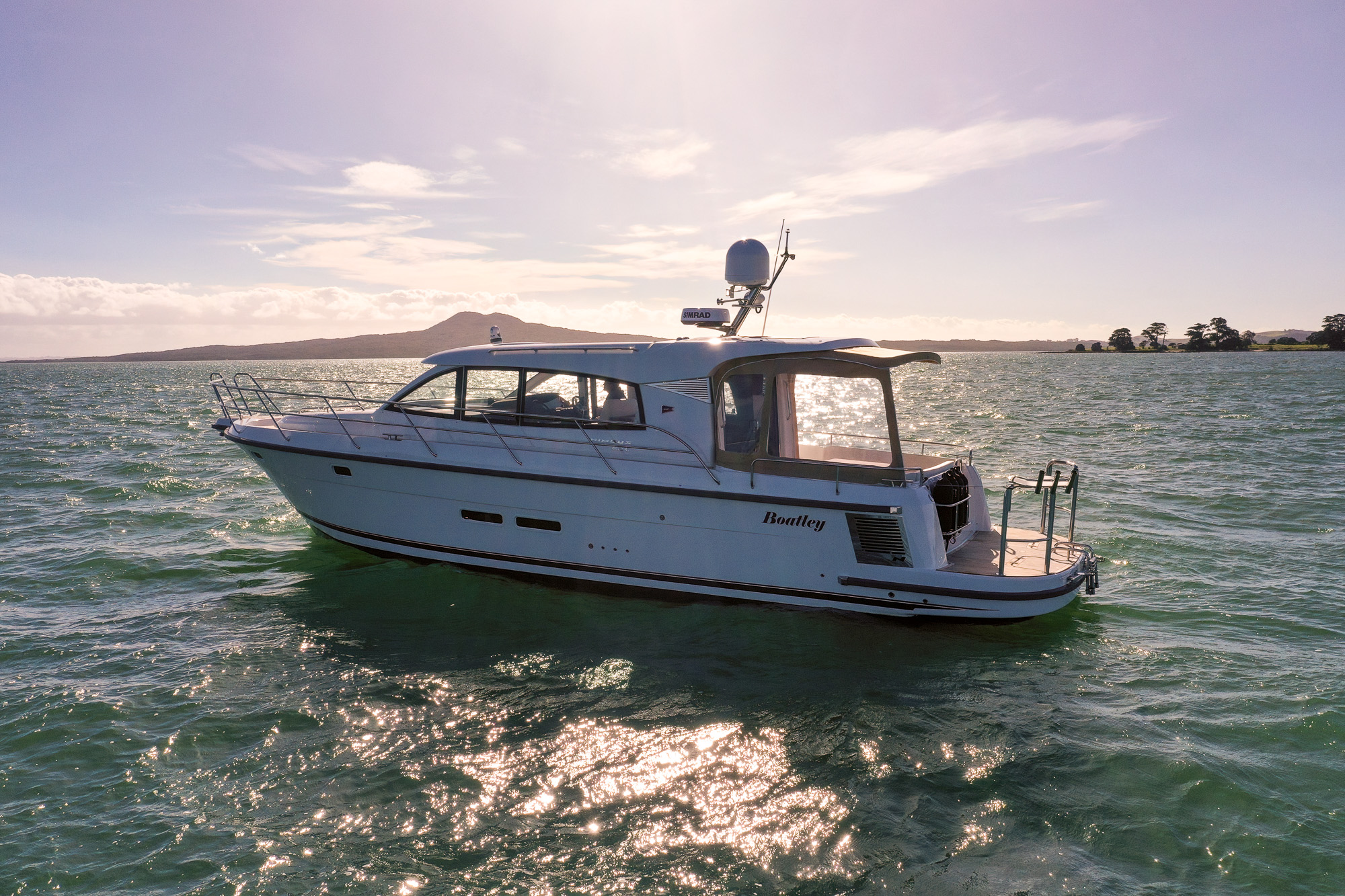

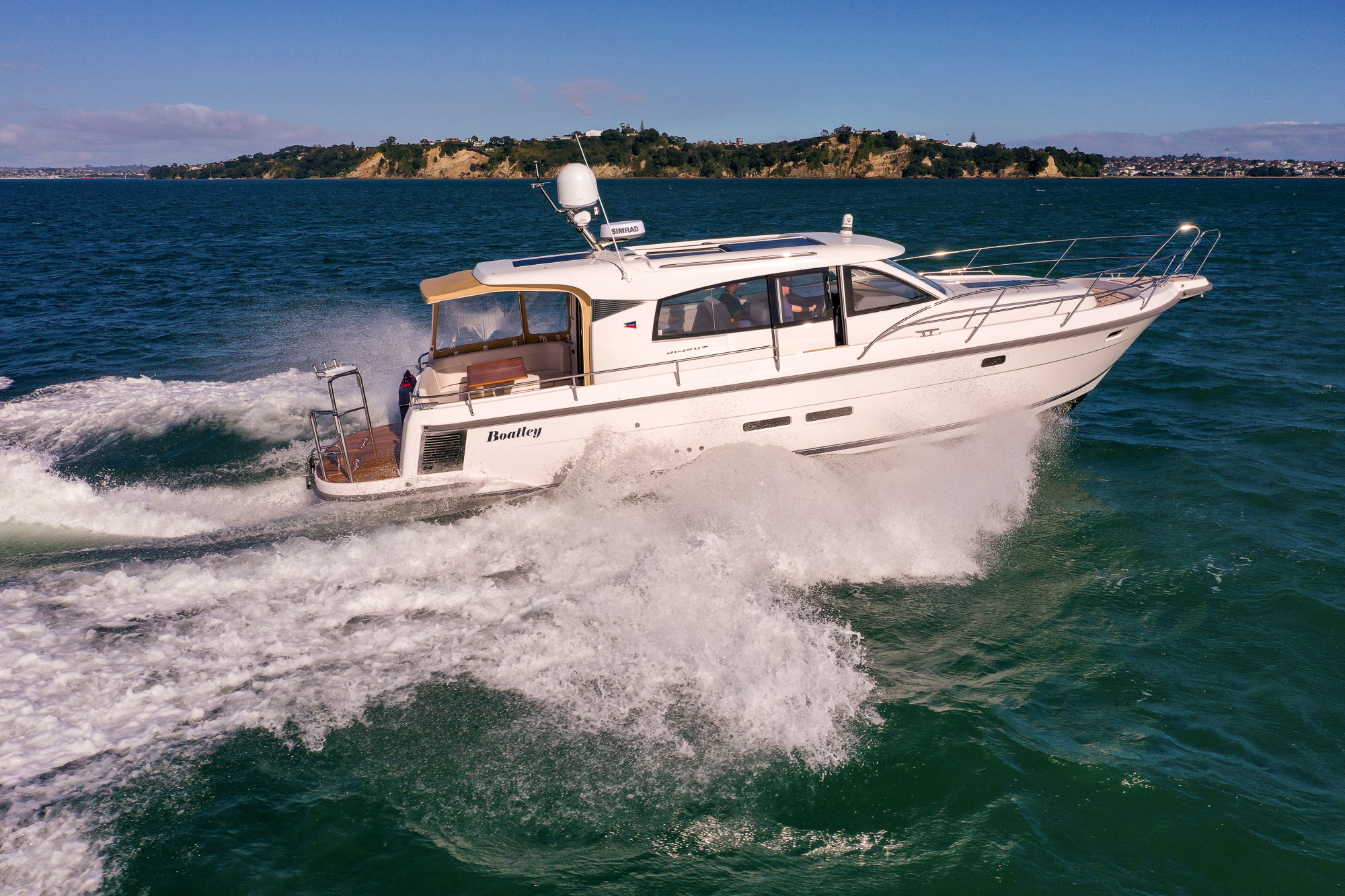

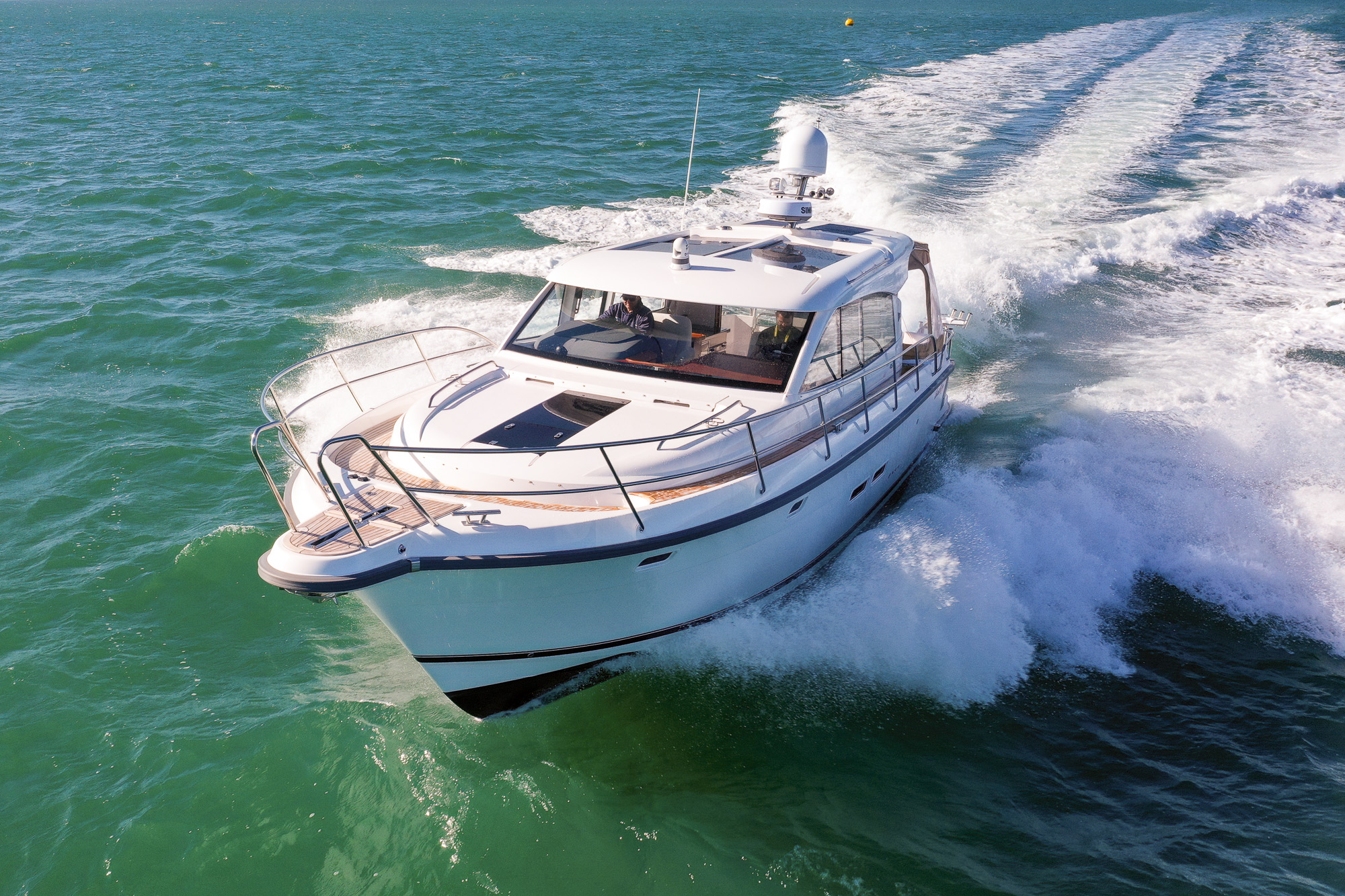

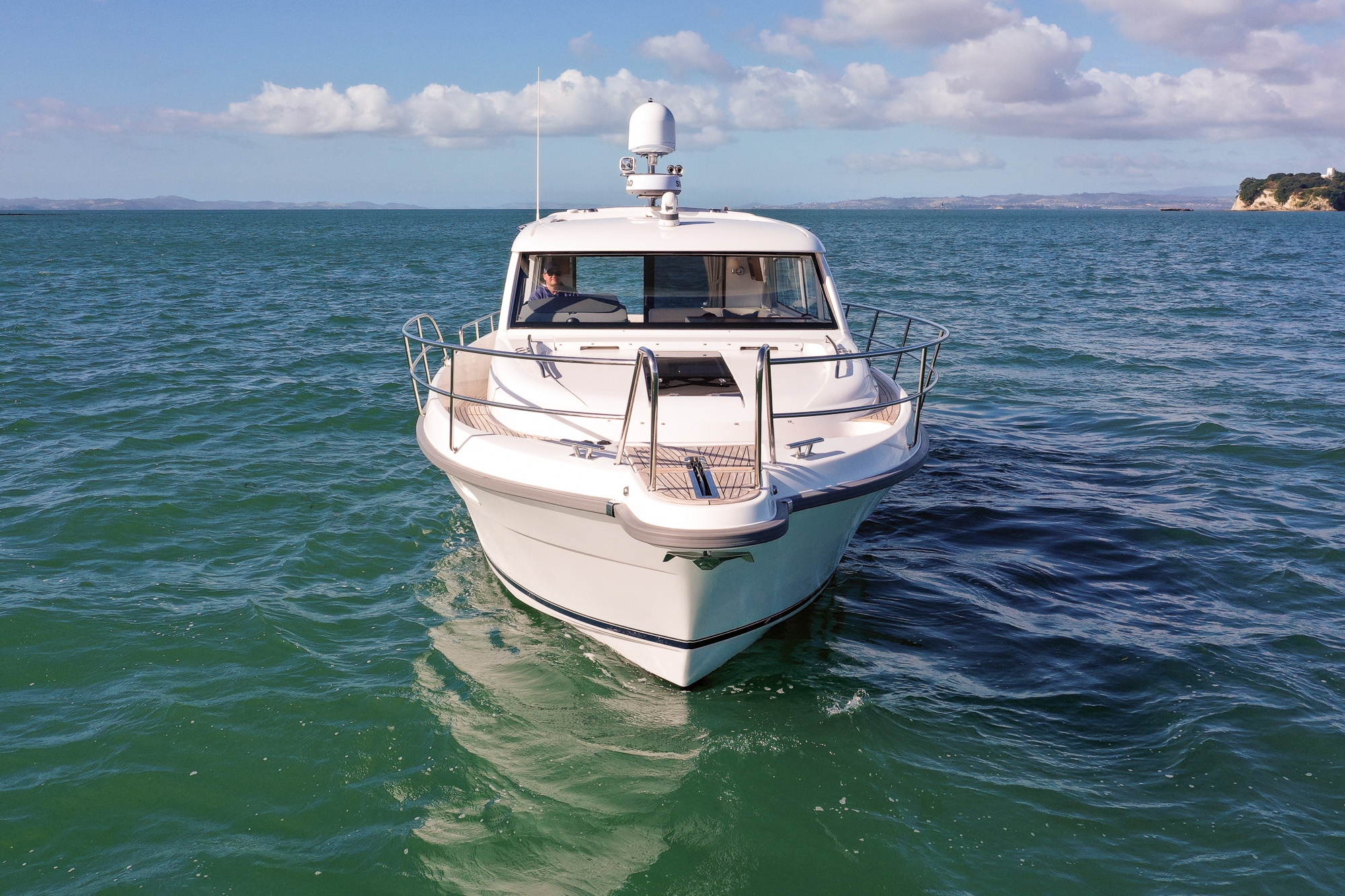

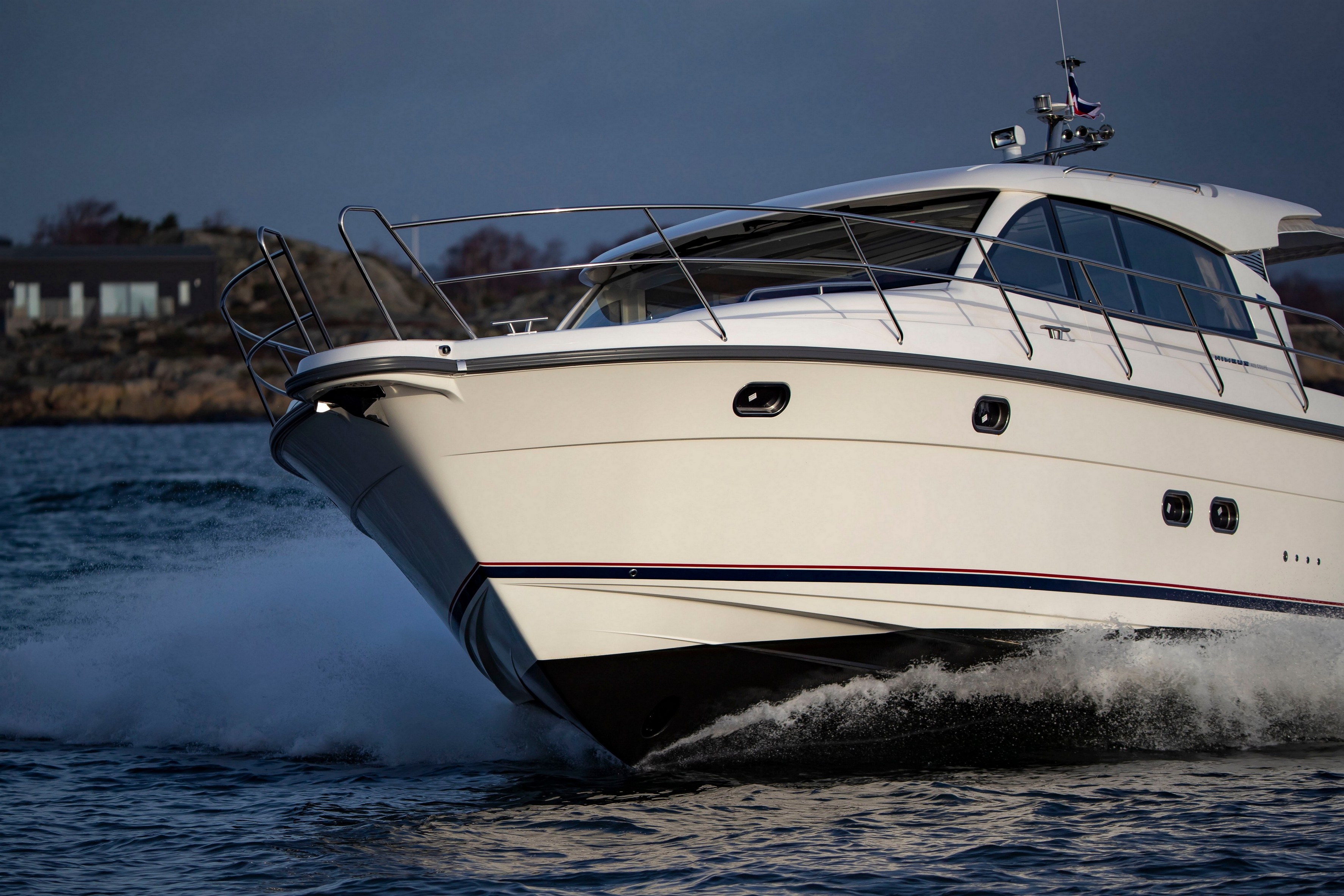

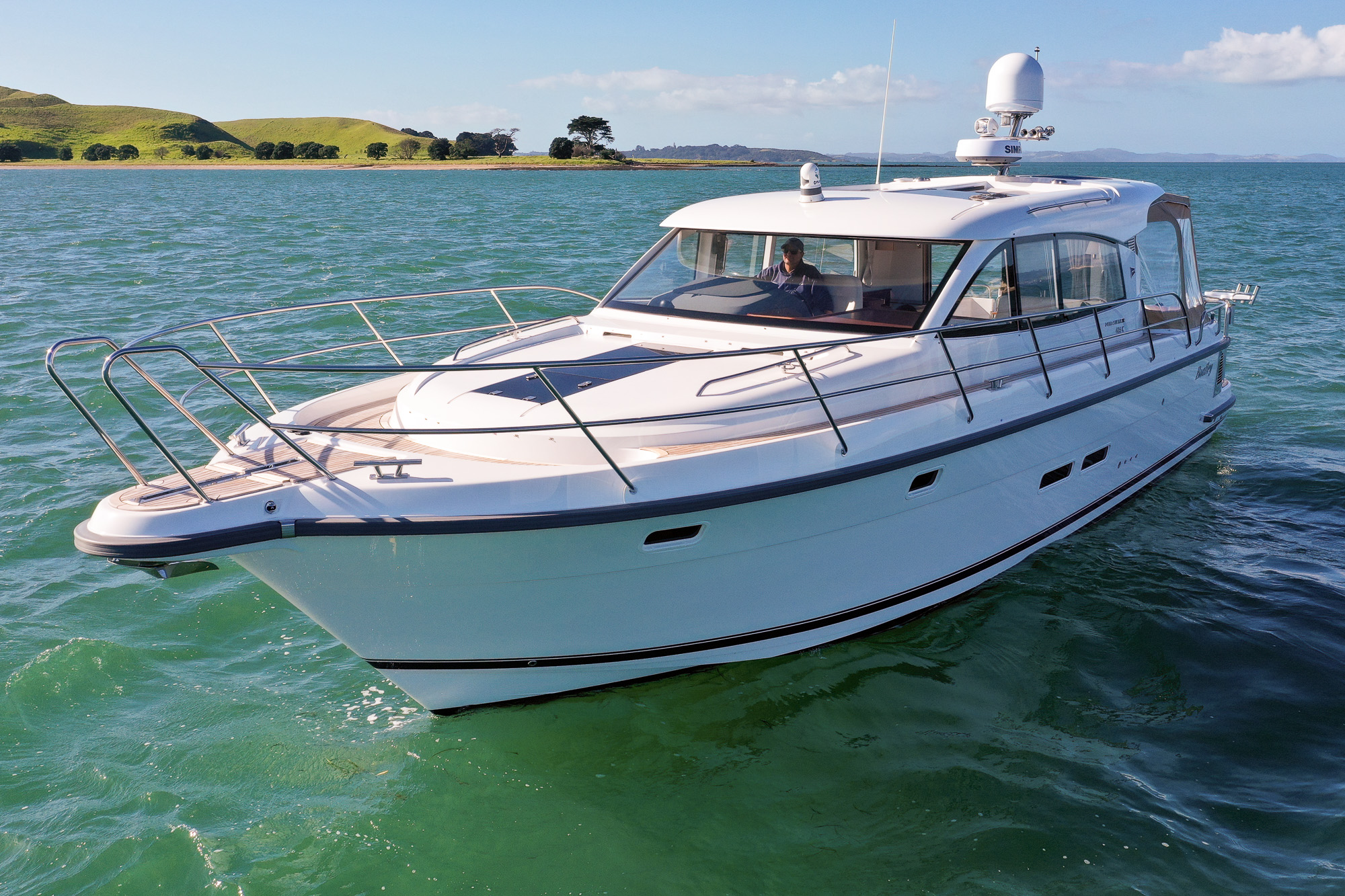

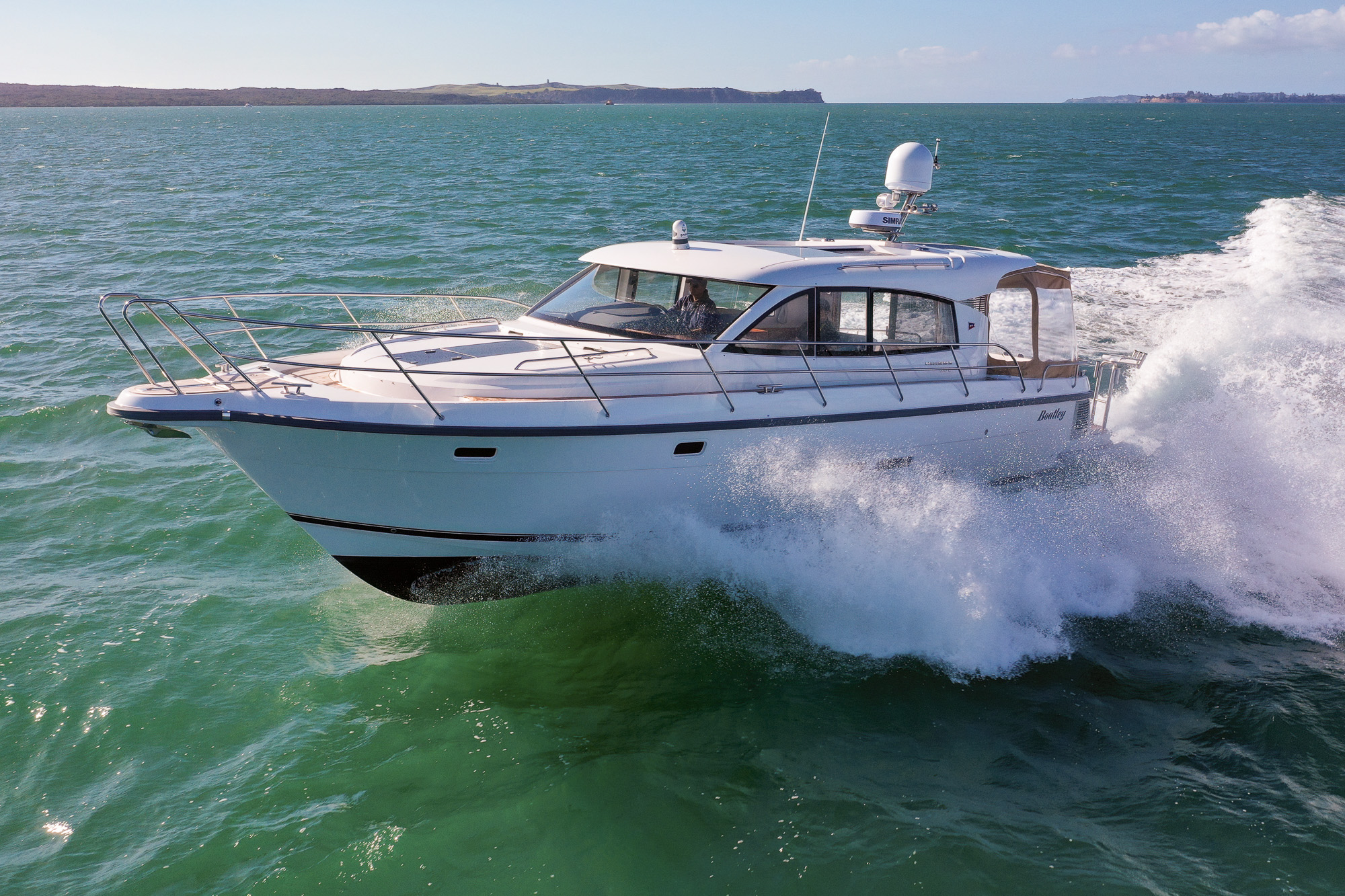

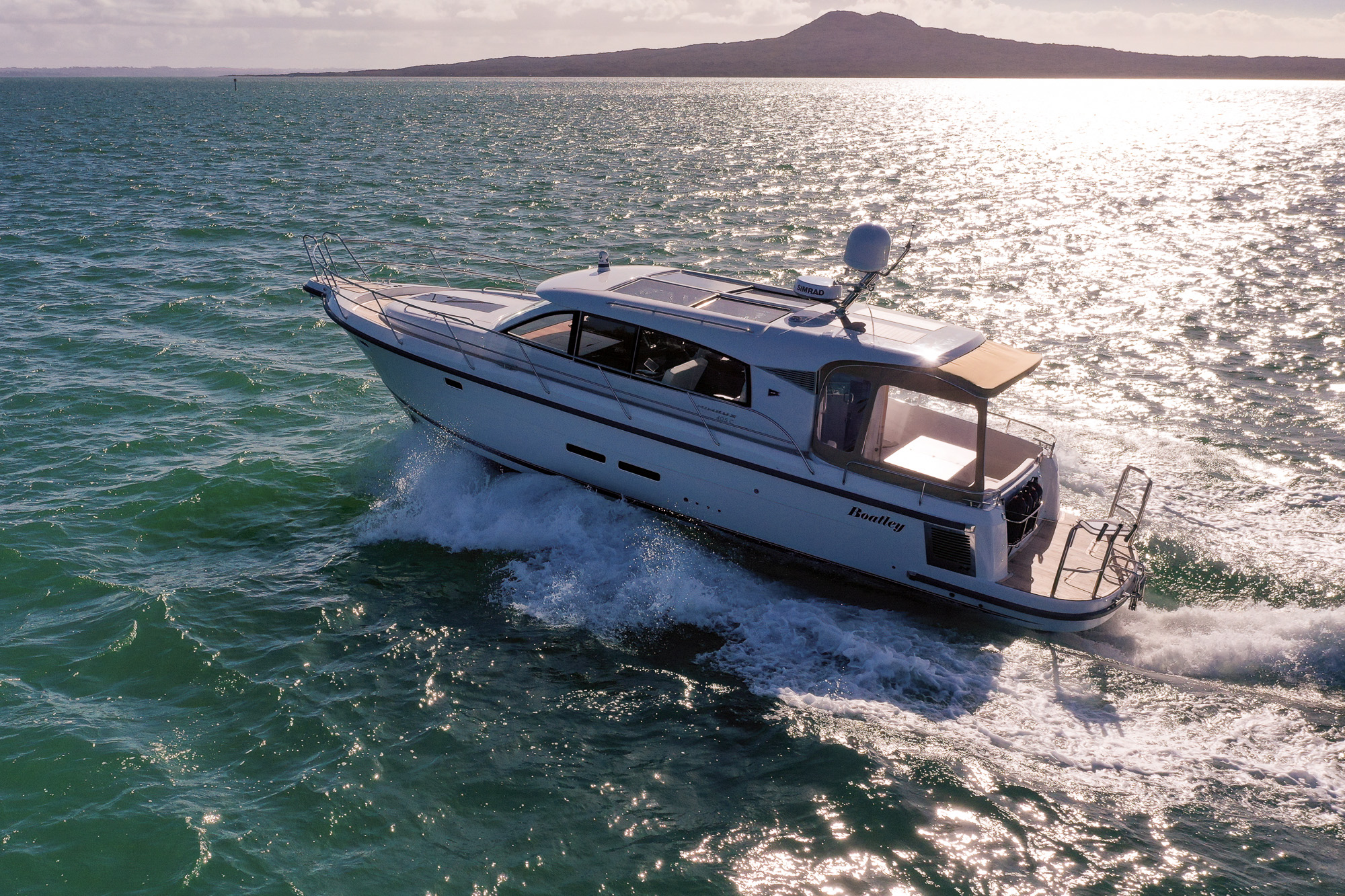

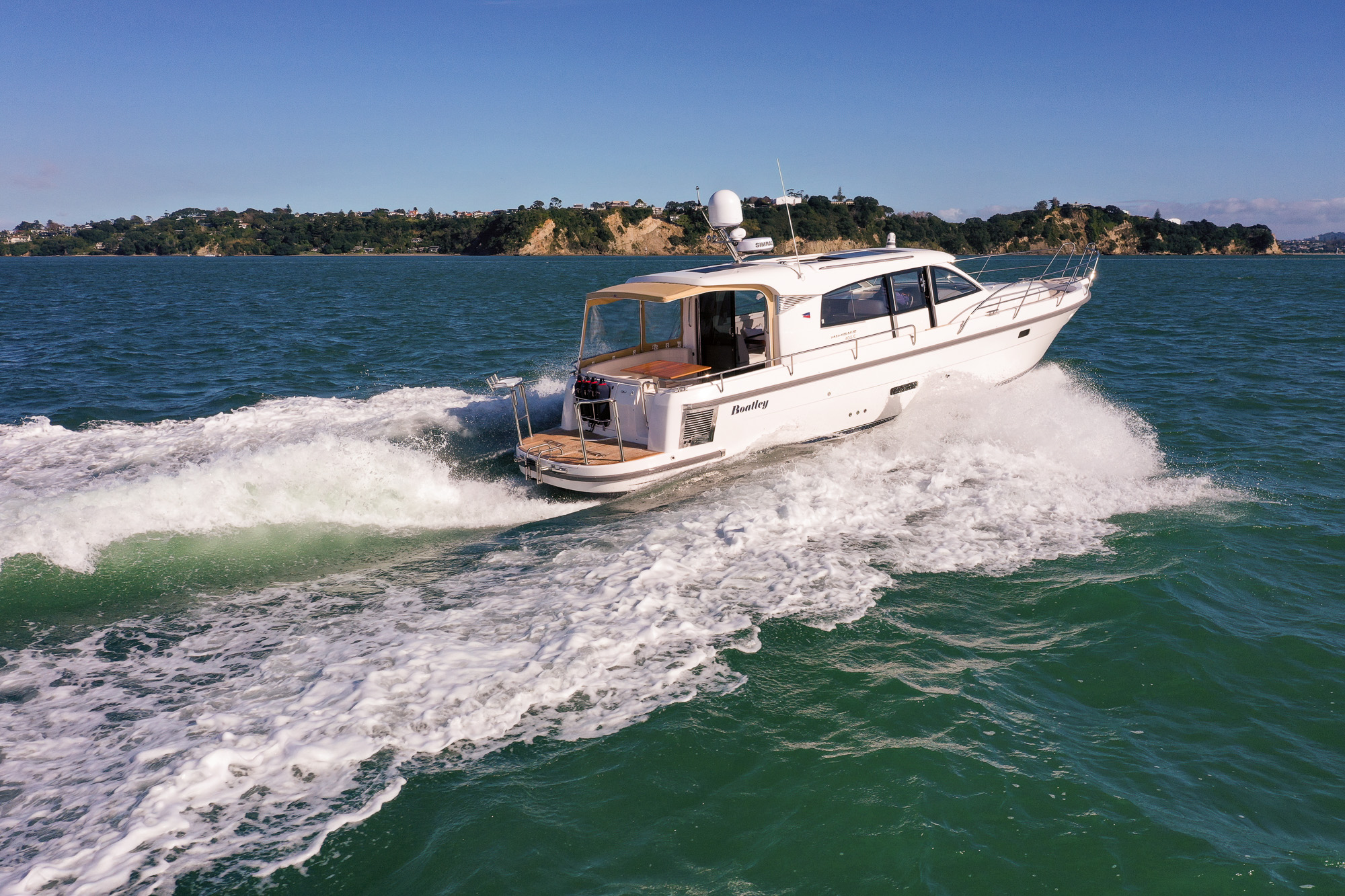

Nimbus 405 Coupe

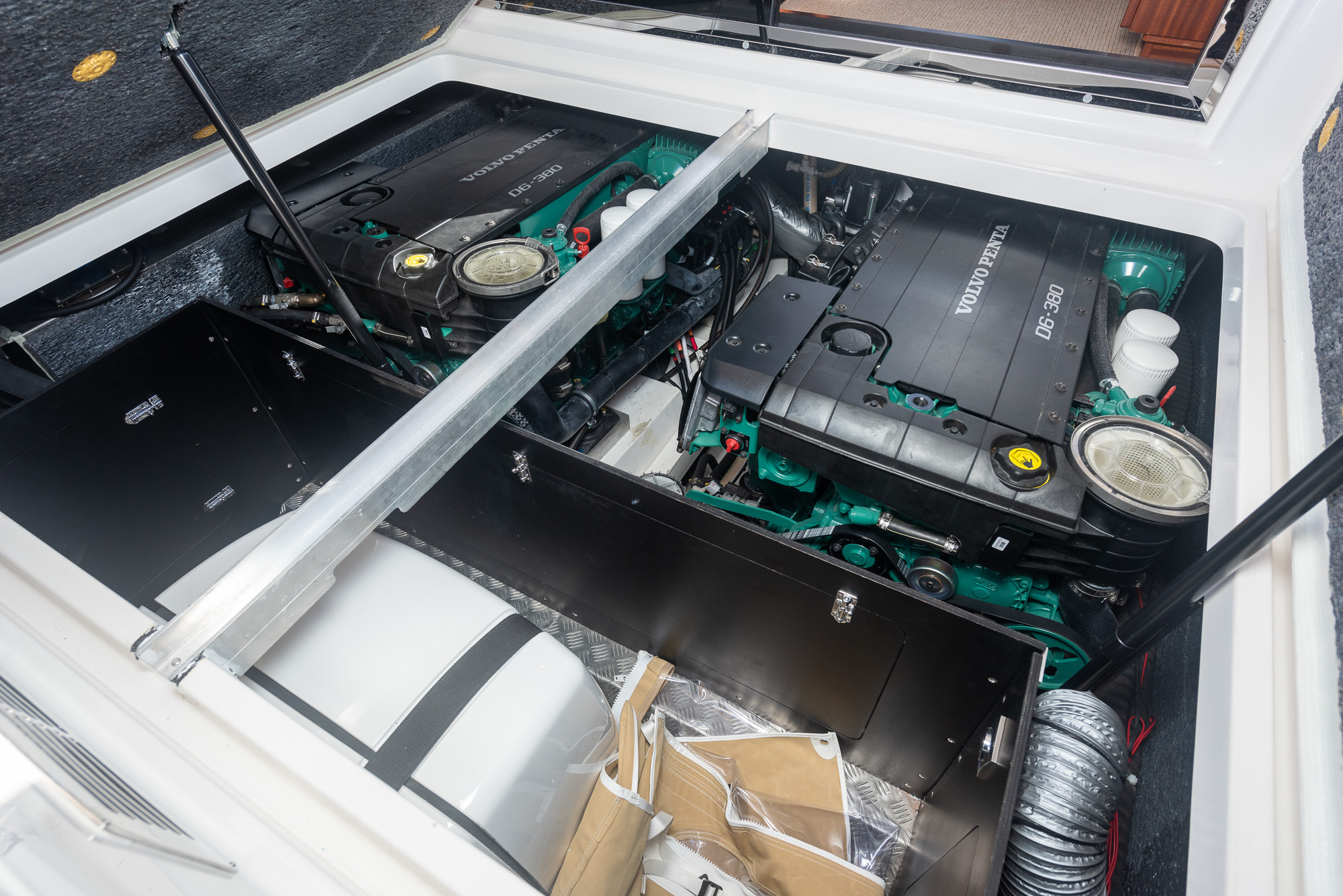

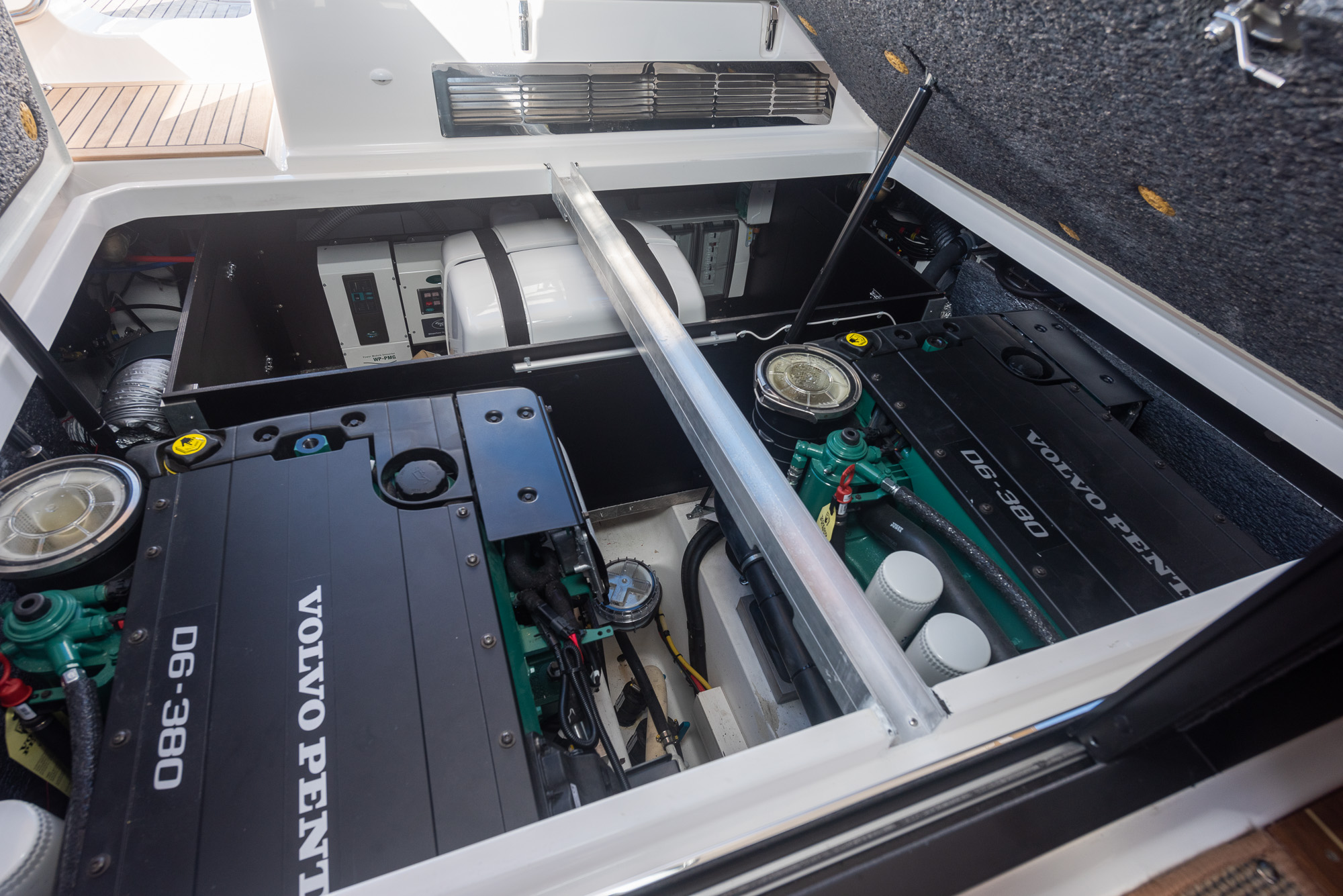

Powered by Twin Volvo Penta D4-320HP Shaft Drive (640 hp) engines with additional engine options available.
This Nimbus Coupé model was designed for people who enjoy social activities, comfortable living quarters, and ease of handling while providing excellent long-distance cruising.

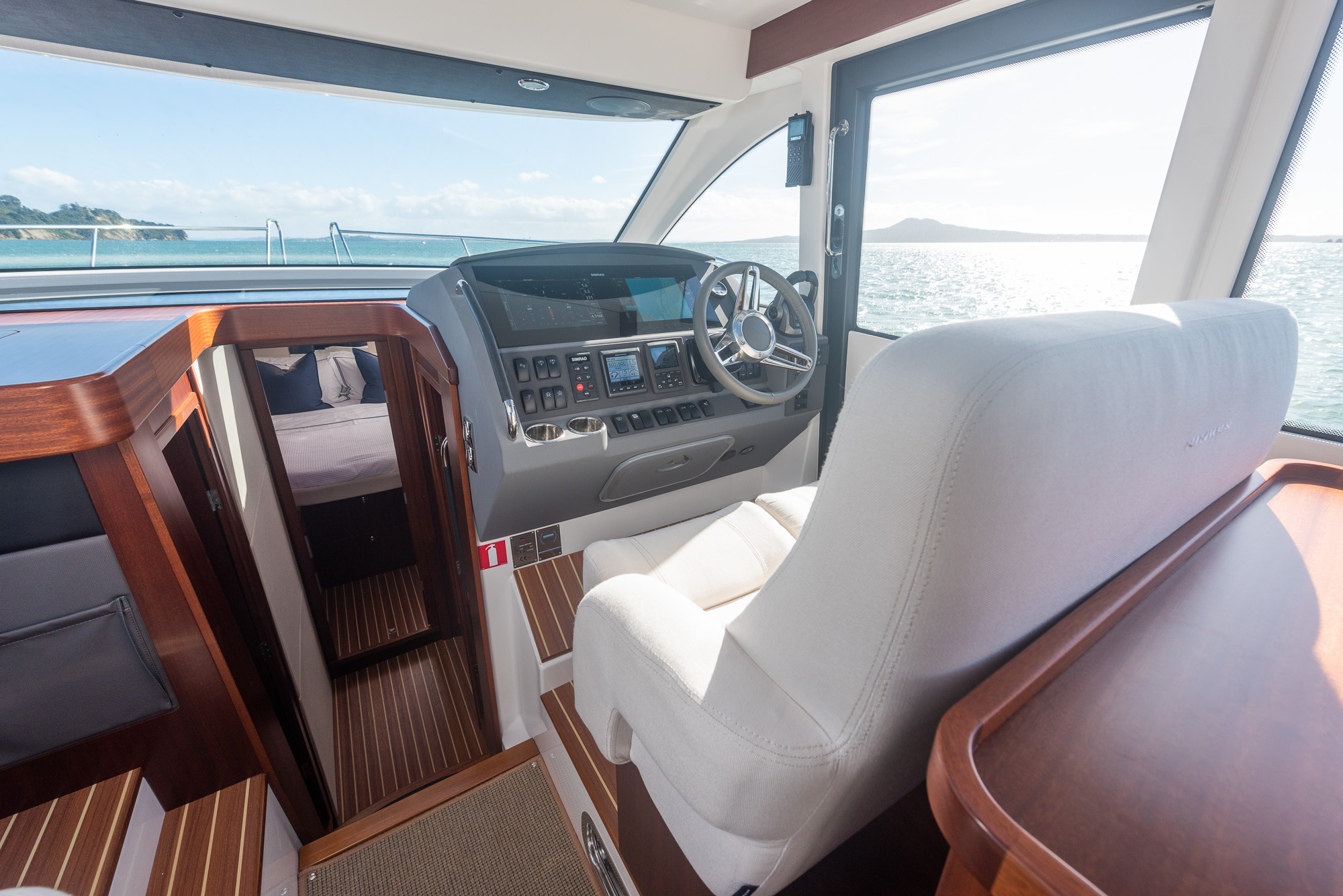

The boat has many similarities to her smaller sisters but offers several new features; Nimbus Design Team has added several interesting aesthetic and functionally integrated details. These include twin touch screens at the helm, room for five to ride facing front, a new D-pillar with integrated ventilation, wholly glazed aft deck door, electric-powered table on the aft deck and a “granny hatch” that conceals a mains power plug on the stern.
gallery
BASIC SPECIFICATIONS
- Lmax, Overall length: 13,33 m / 43,8 ft
- Lh, Length of hull: 13,16 m / 43,2 ft
- Bmax, Overall beam: 3,86 m / 12,7 ft
- Bh, Beam of hull: 3,75 m / 12,3 ft
- Ha, Air draught: 4,23 m / 13,9 ft
- Air Draught, folded mast: 3,9 m / 12,8 ft
- Th, Transport height: 3,8 m / 12,5 ft
- Thv, Transport height in cradle: 4,00 m / 13,2 ft
- Tmax, Draught: 1,05 m / 3,5 ft
- CoG, Centre of gravity: 4,05 m / 13,3 ft
- MLDC, max weight allowed (2 x D4/2 x D6): 11600/11850 kg / 25574/26125 Ibs
- MLCC, Weight: 8700/8950 kg / 19180/19732 lbs
- MMTL, Max total load: 2900 kg / 6393 lbs
- Max people: 12 Pers.
- CE category: B

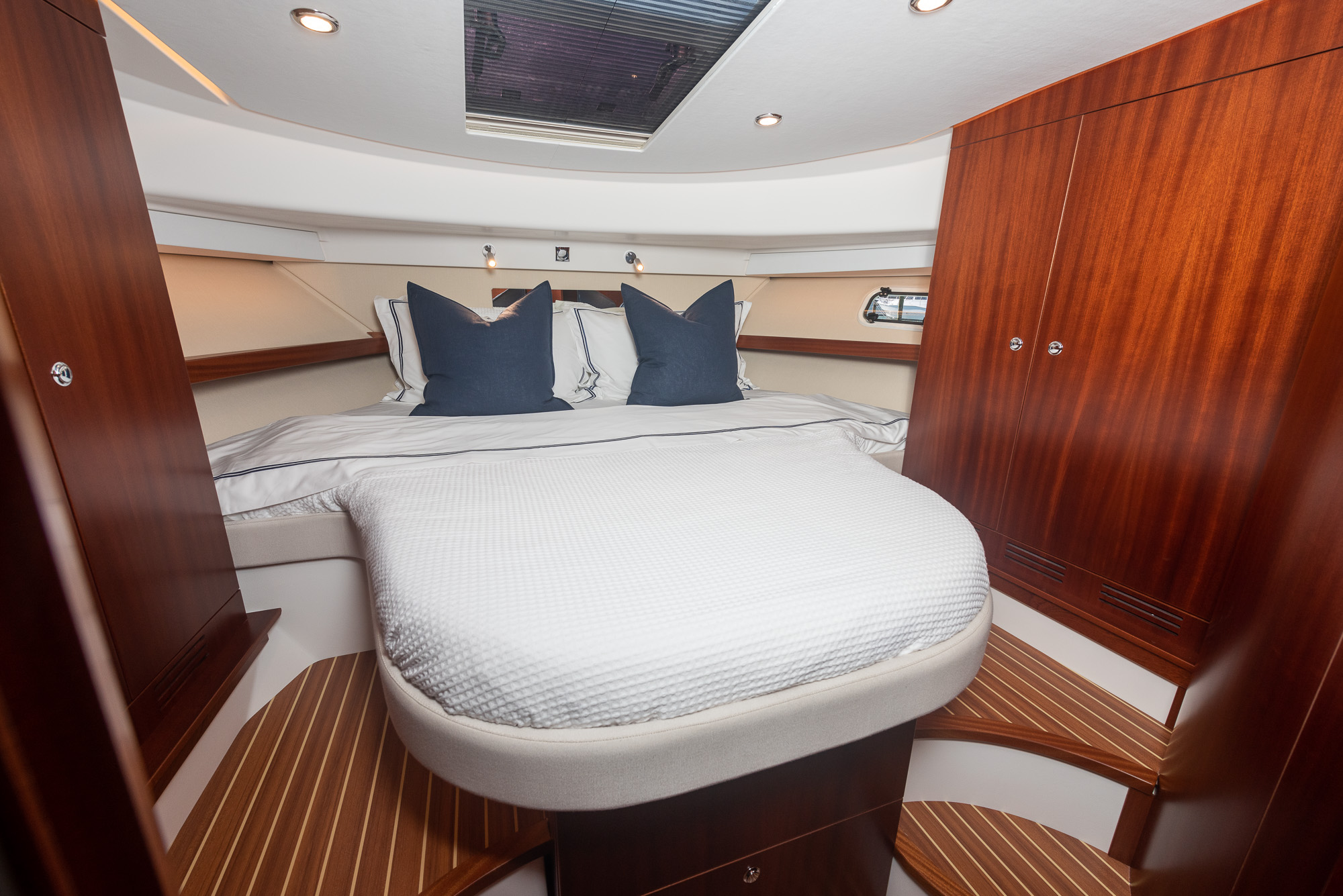

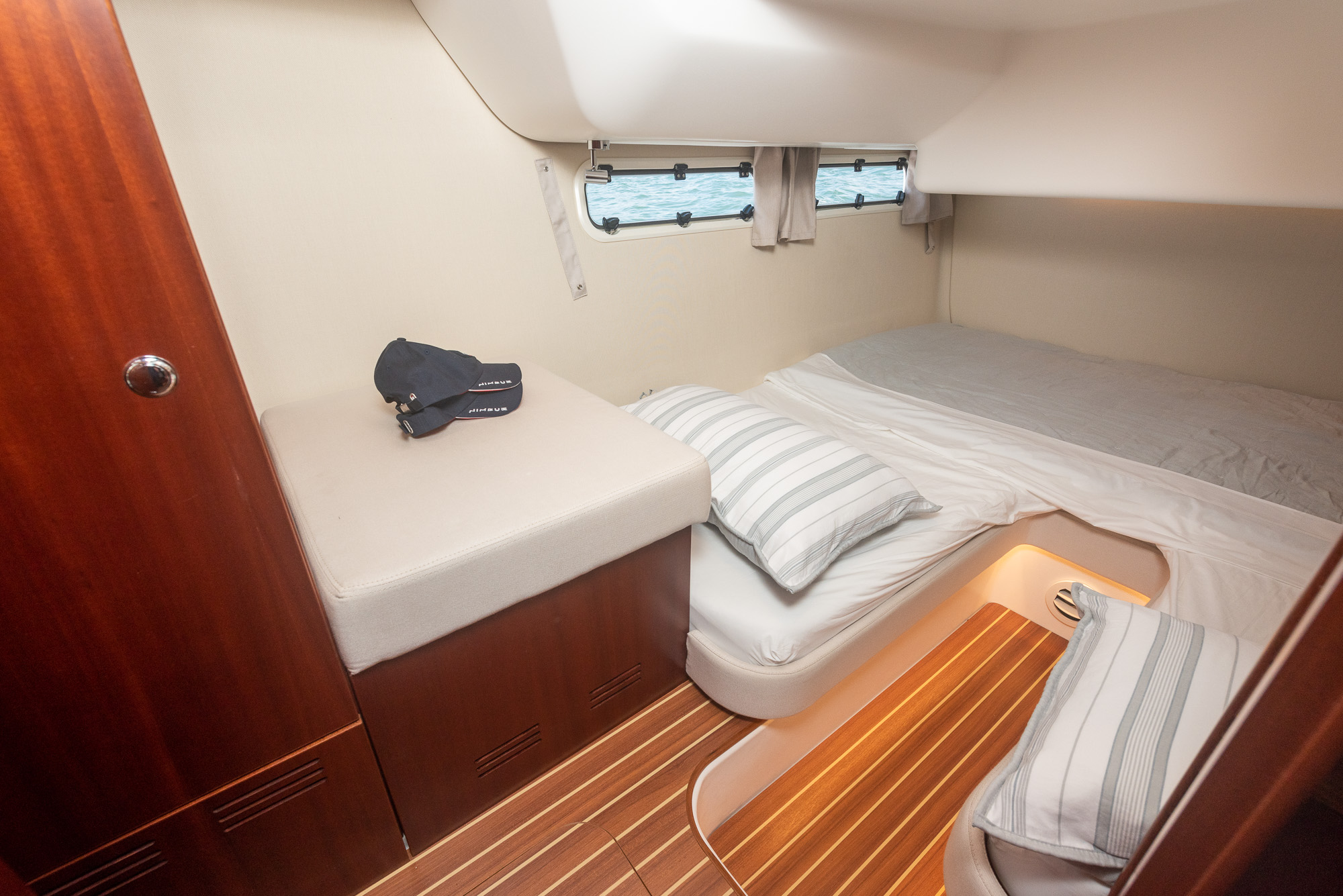

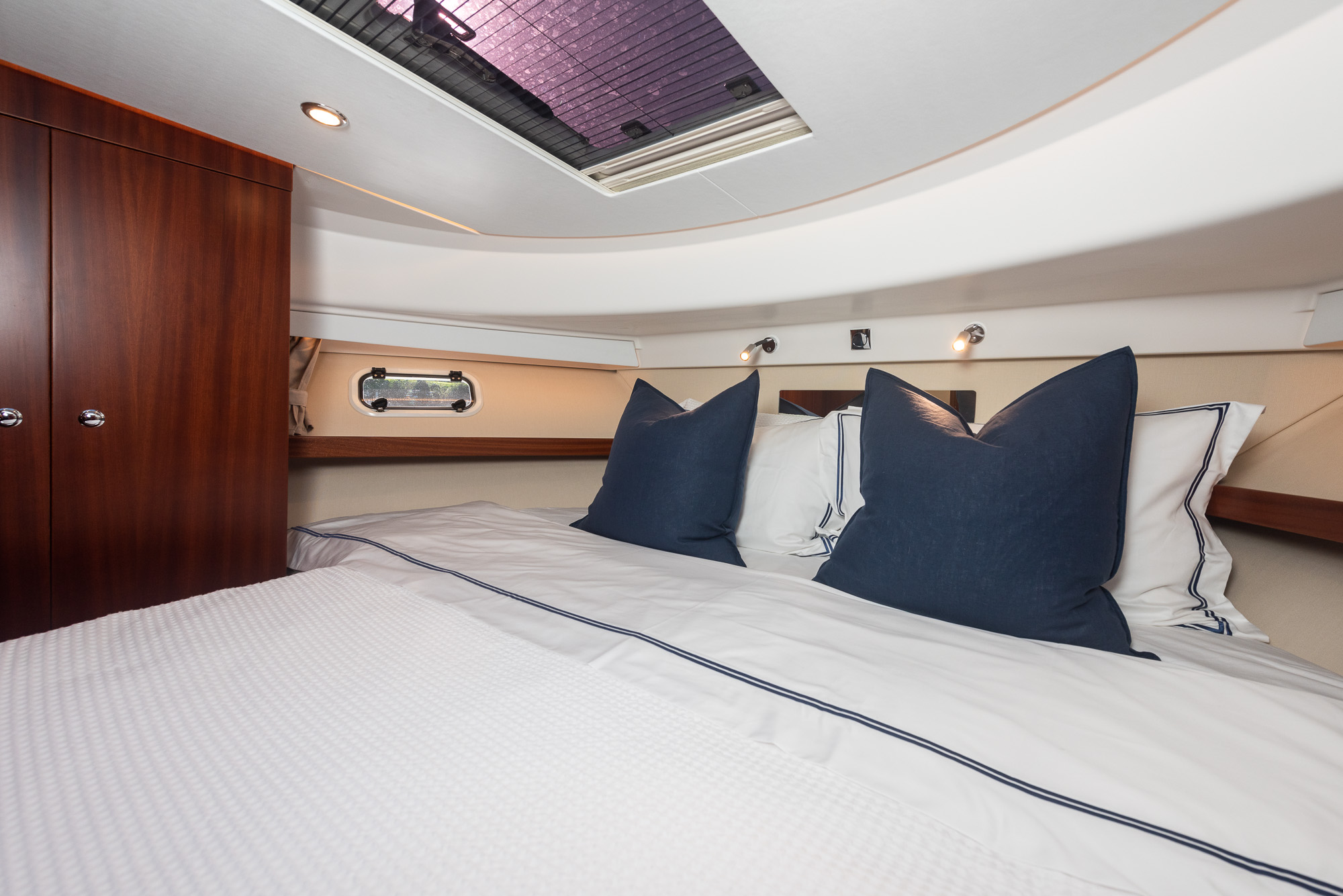

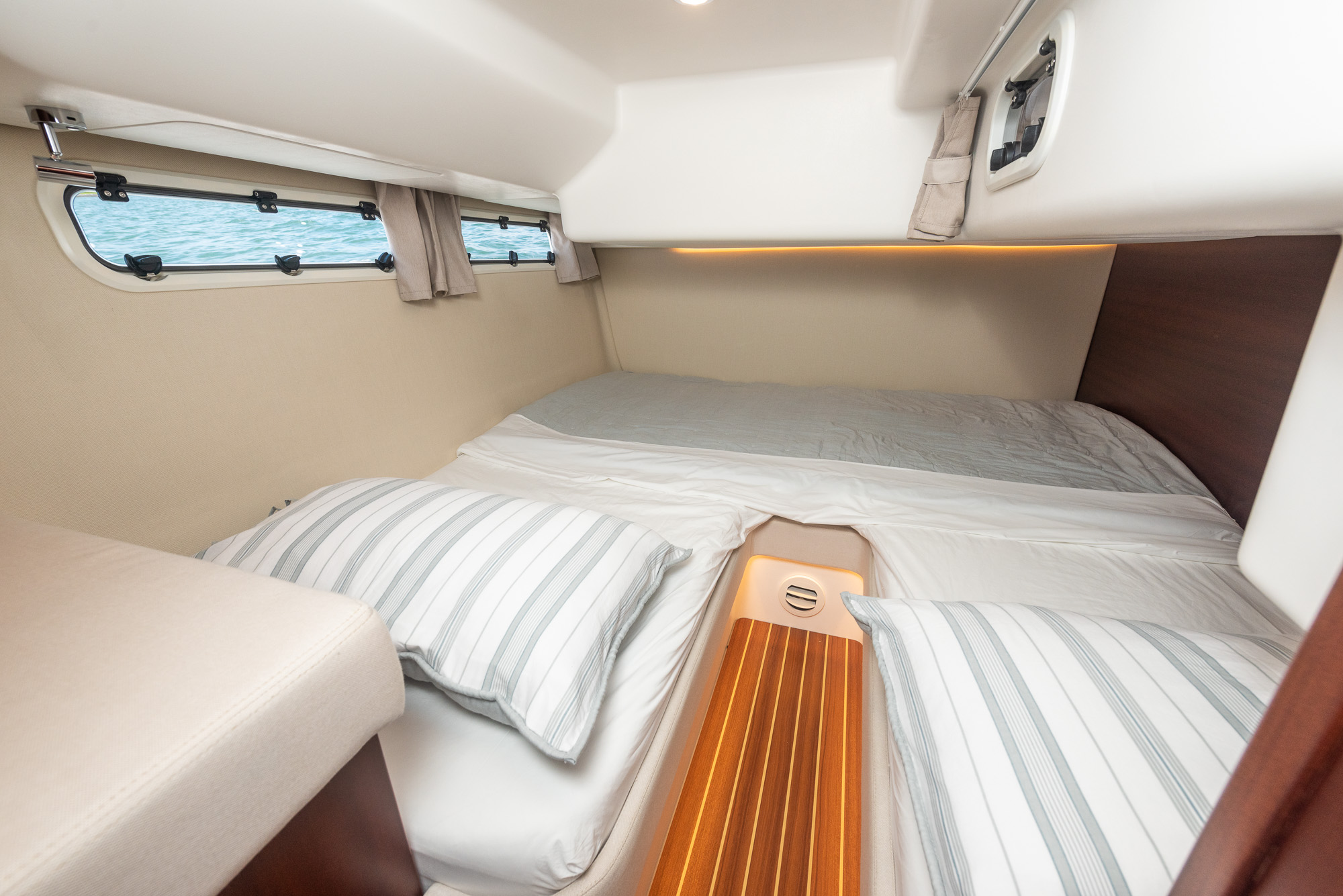

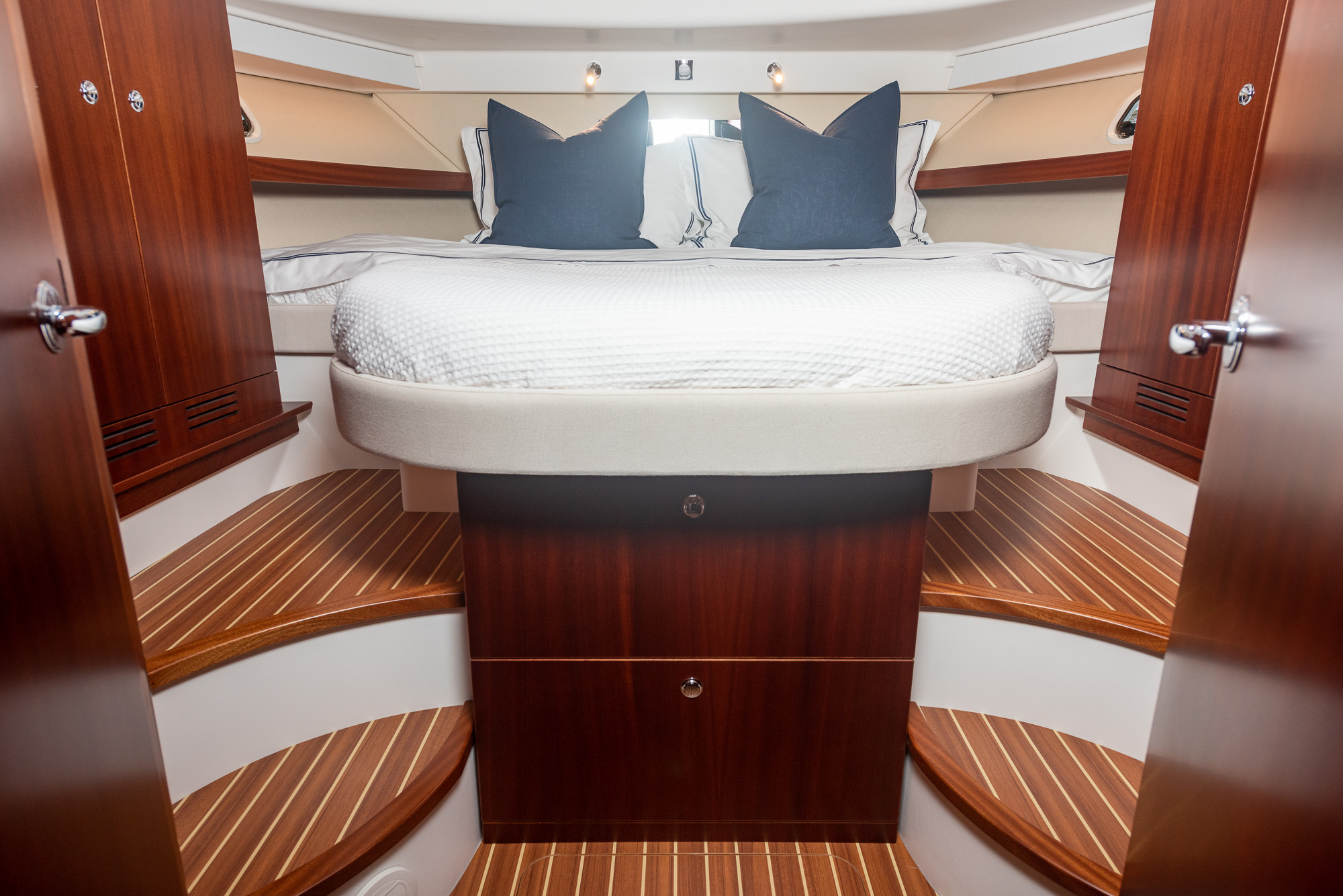

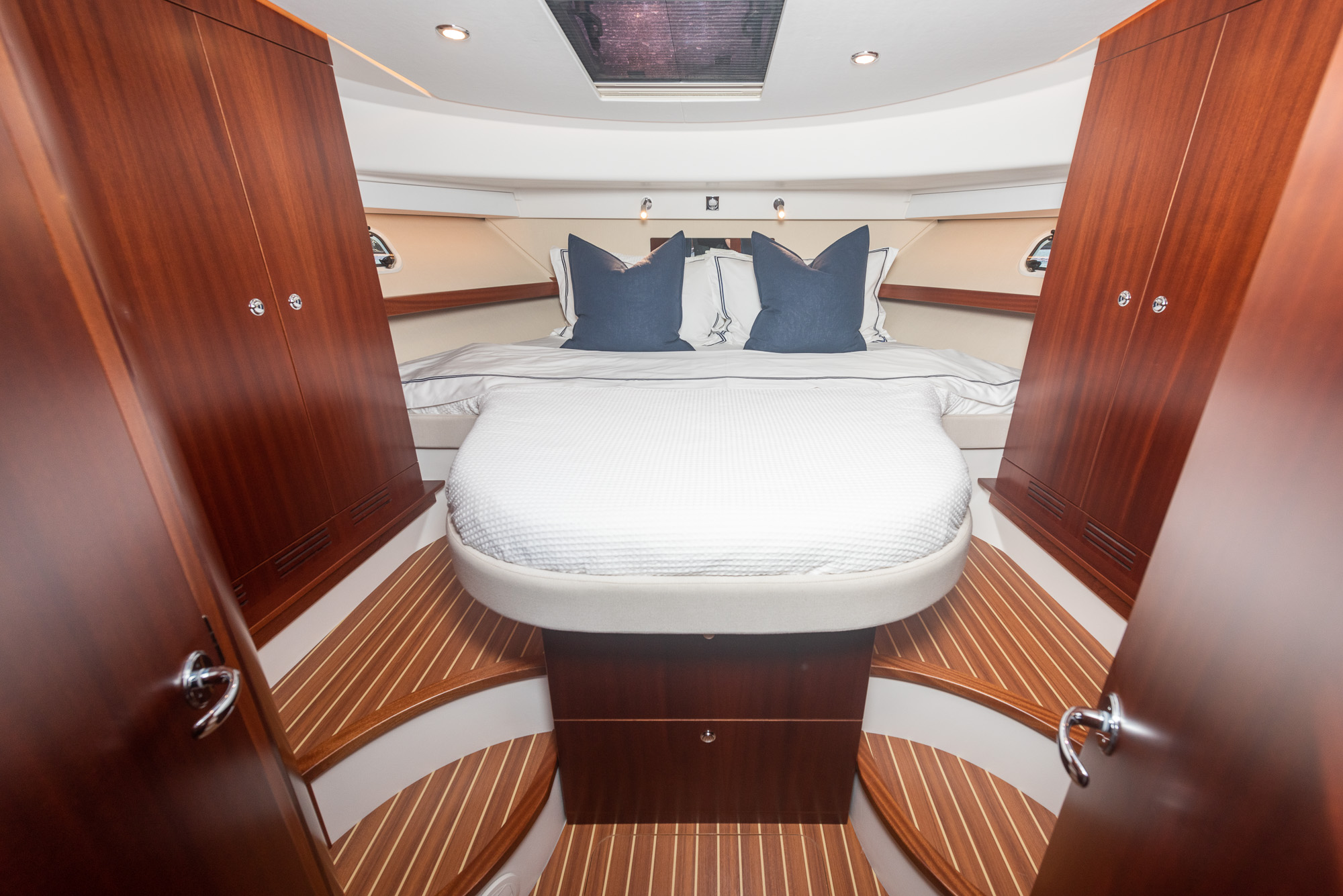

- Cabins: 3
- Cabins: 3
- Fuel capacity: 2 x 500 l / 2 x 132 US gal
- Water capacity: 2 x 200 l / 2 x 52,8 US gal
- Hot Water capacity: 40 l / 10,57 US gal
- Waste capacity: 135 l / 35,7 US gal
- Start battery: 1 x 12V x 77 Ah
- Service battery: 7 x 12V x 80 Ah
- Service battery Heavy Duty: 3 x 12V x 77 Ah
- Frequency: 50 Hz
- Battery charger: 12V 50 A
- Shore power: 230V AC
QUICK FACTS
- 12 V electric outlet
- Anchorbox with drainage
- Bathing platform with anchor box
- Bathing ladder
- Bowsprit

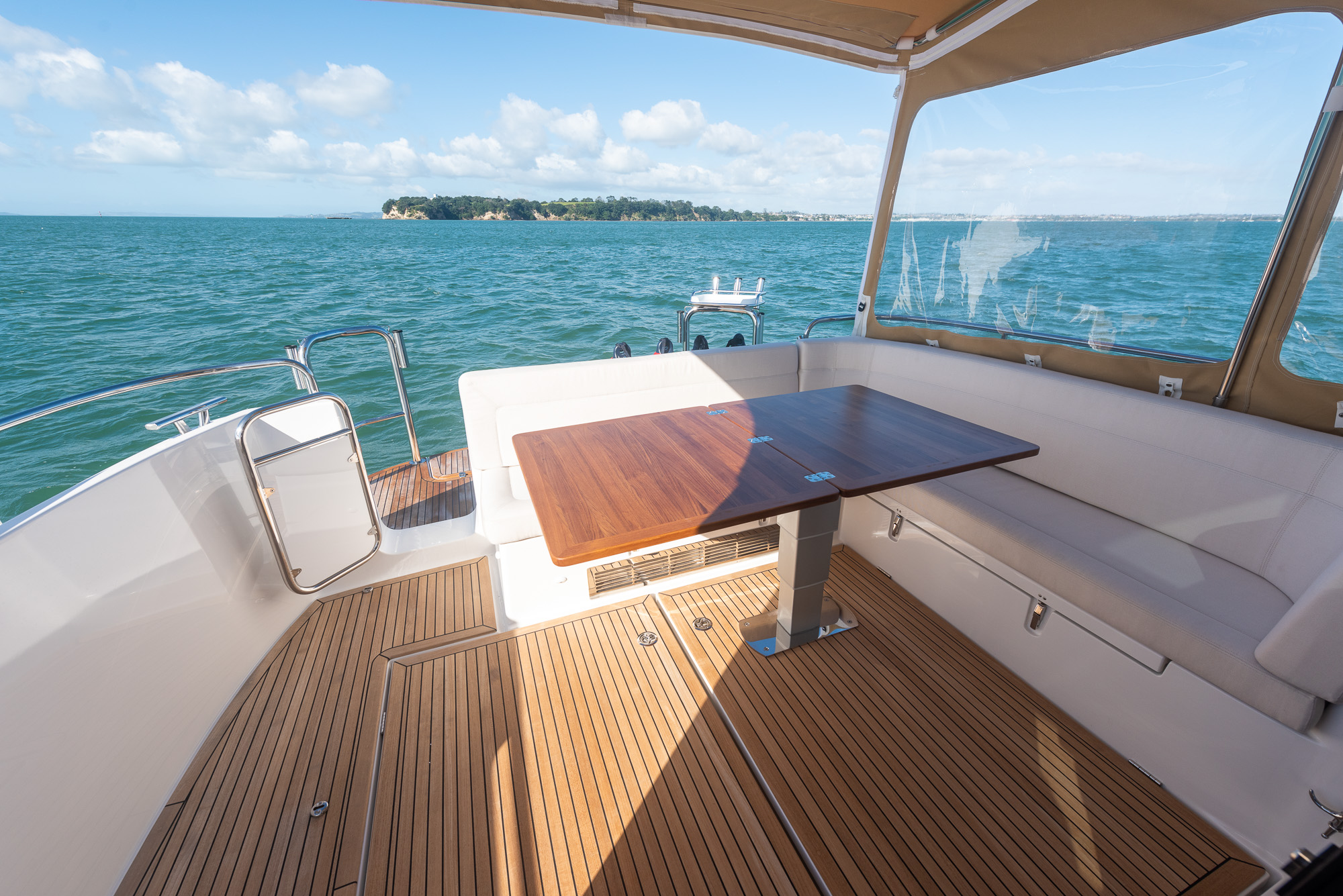

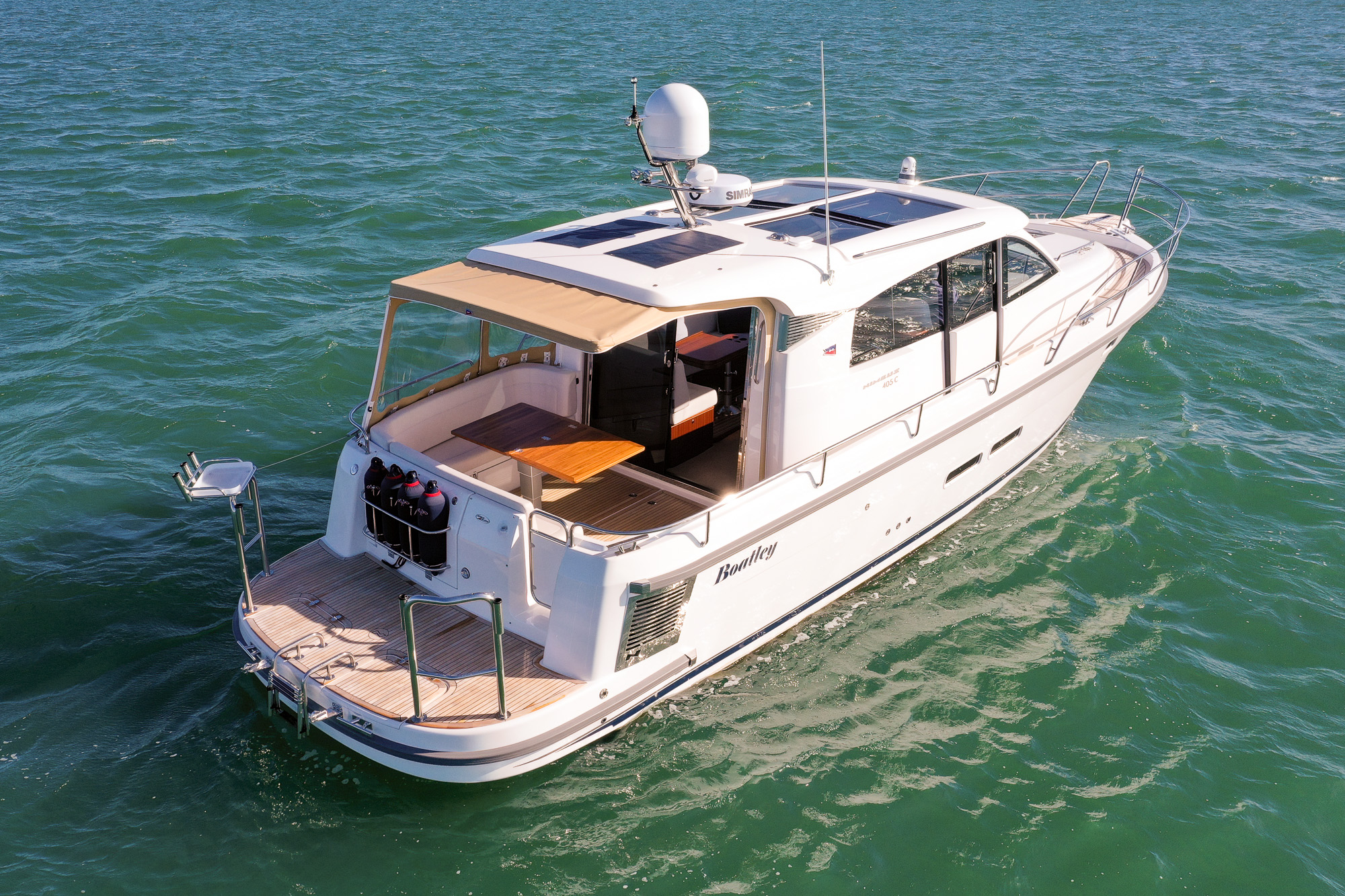

- Table on aft deck
- Fire extinguisher
- Boat hook
- Aft shower
- Shower in toilet room / Shower cabin
- Cushions in cockpit
- Cushions in cabin
- Electrical panel with fuses
- Electrical engine controls
- Sea chart compartment
- Fender holders or fenderbox
- Flagpole
- First-aid-kit
- Cushions in cabin
- Glass/bottle holder in dashboard
- Grab rail mahogany / stainless steel
- R design instrument panel
- Compass
- Fridge/Cooler box
- Log and sounder
- Manual and electric bilge pump
- Marine varnished mahogany interior
- Carpeting in sleeping cabins
- Black-out curtains
- Nimbus toolkit
- Nimbus cutlery and crockery

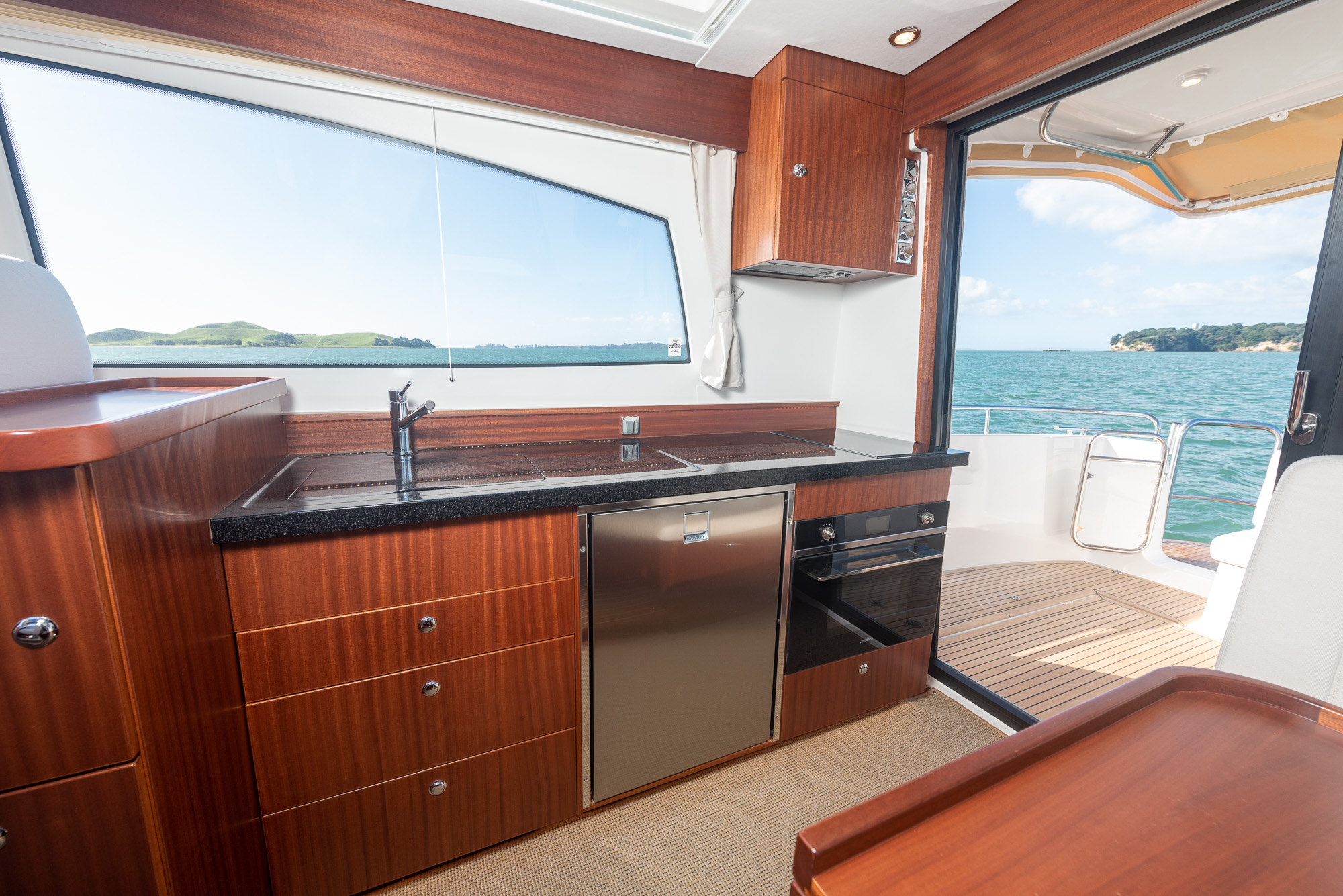

- Galley with sink
- Plotter / GPS Simrad NSE12
- Pillows (Nimbus design)
- Pulpits and bollards in stainless steel
- Stainless steel fuel tank
- Stainless steel navigation lights
- Holding tank with deck outlet
- Signal horn
- Cushion, aft deck
- Self-bailing aft deck
- Leather steering wheel
- Sandwich laminate
- Skylight on deck with curtain
- Step-light aft deck

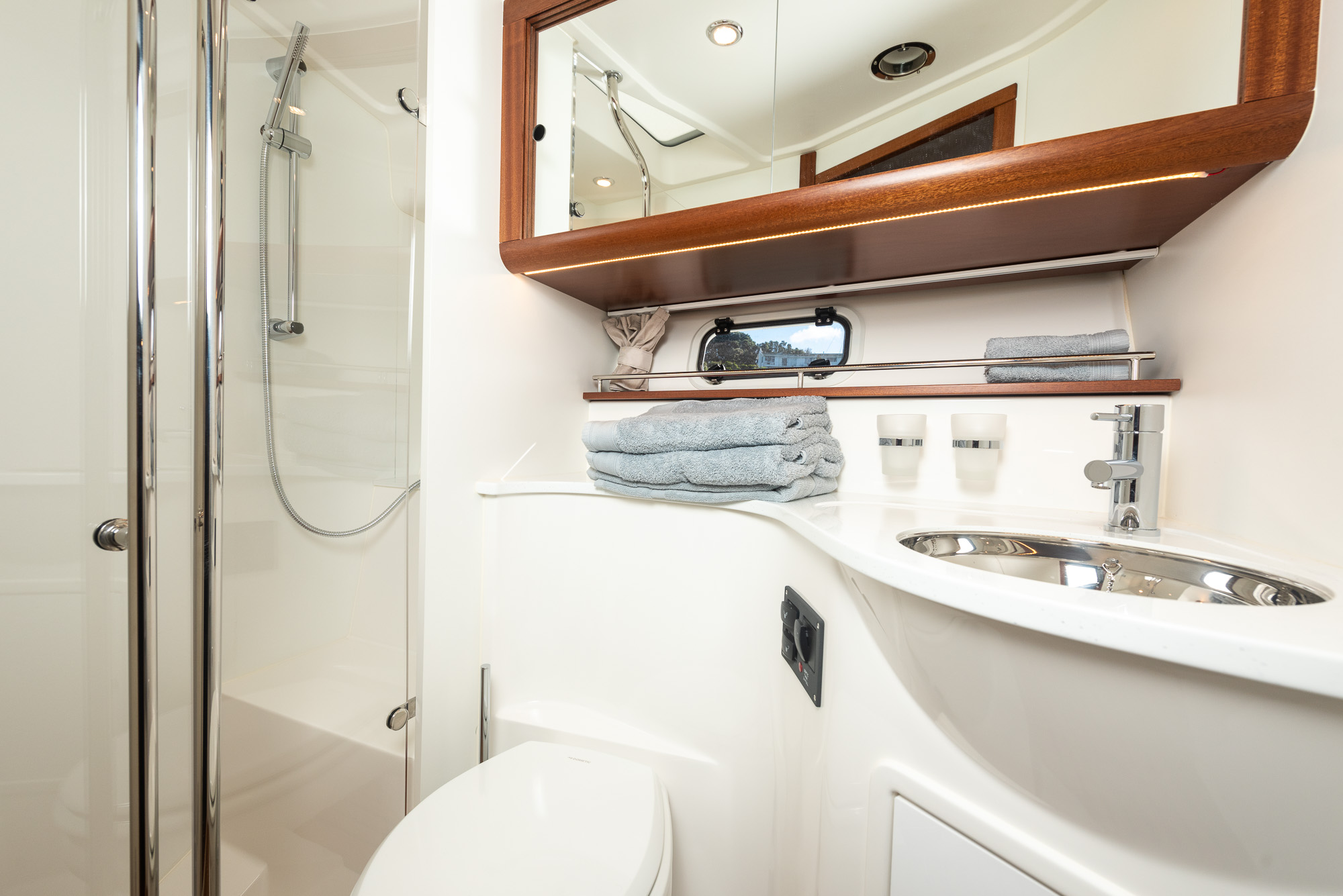

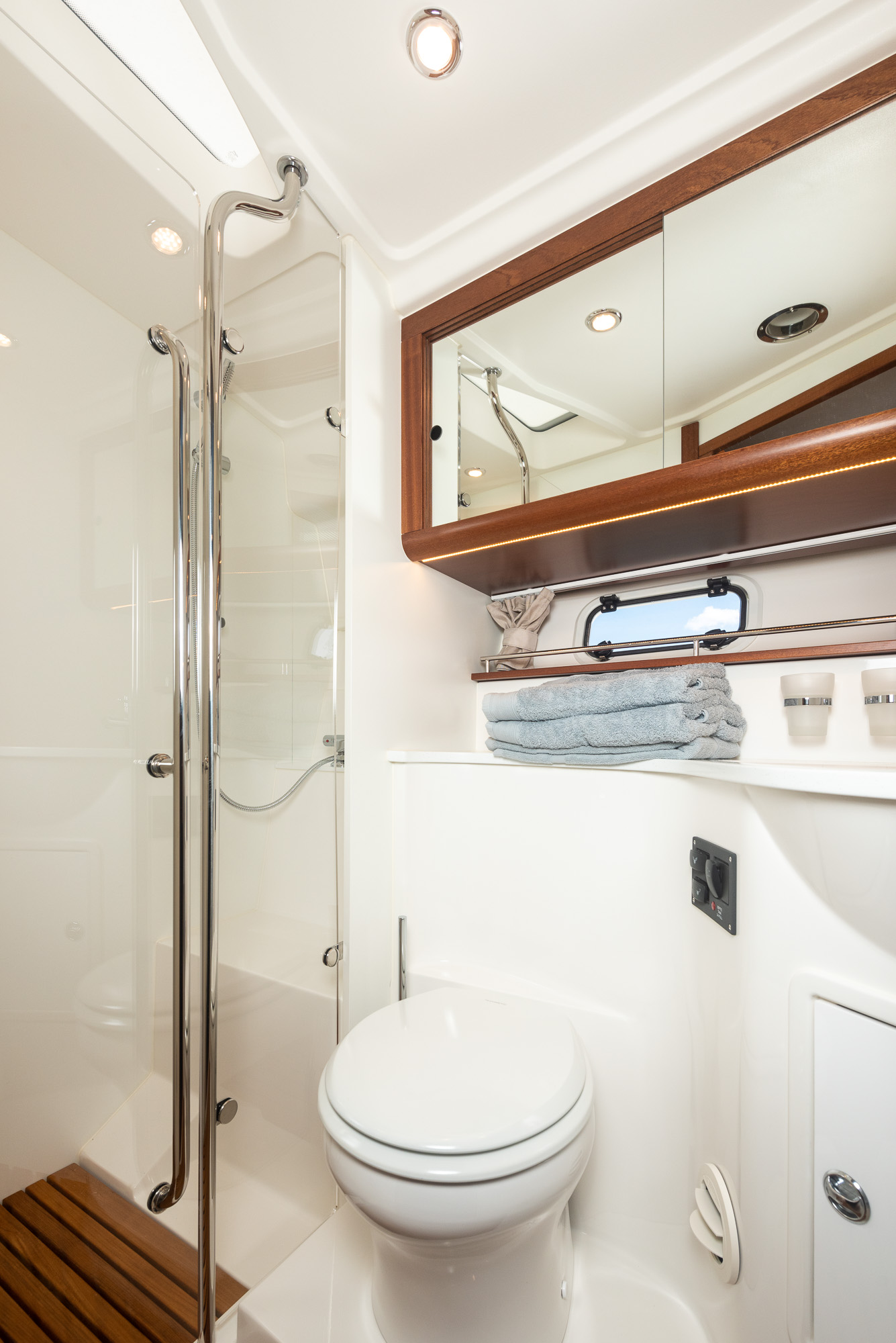

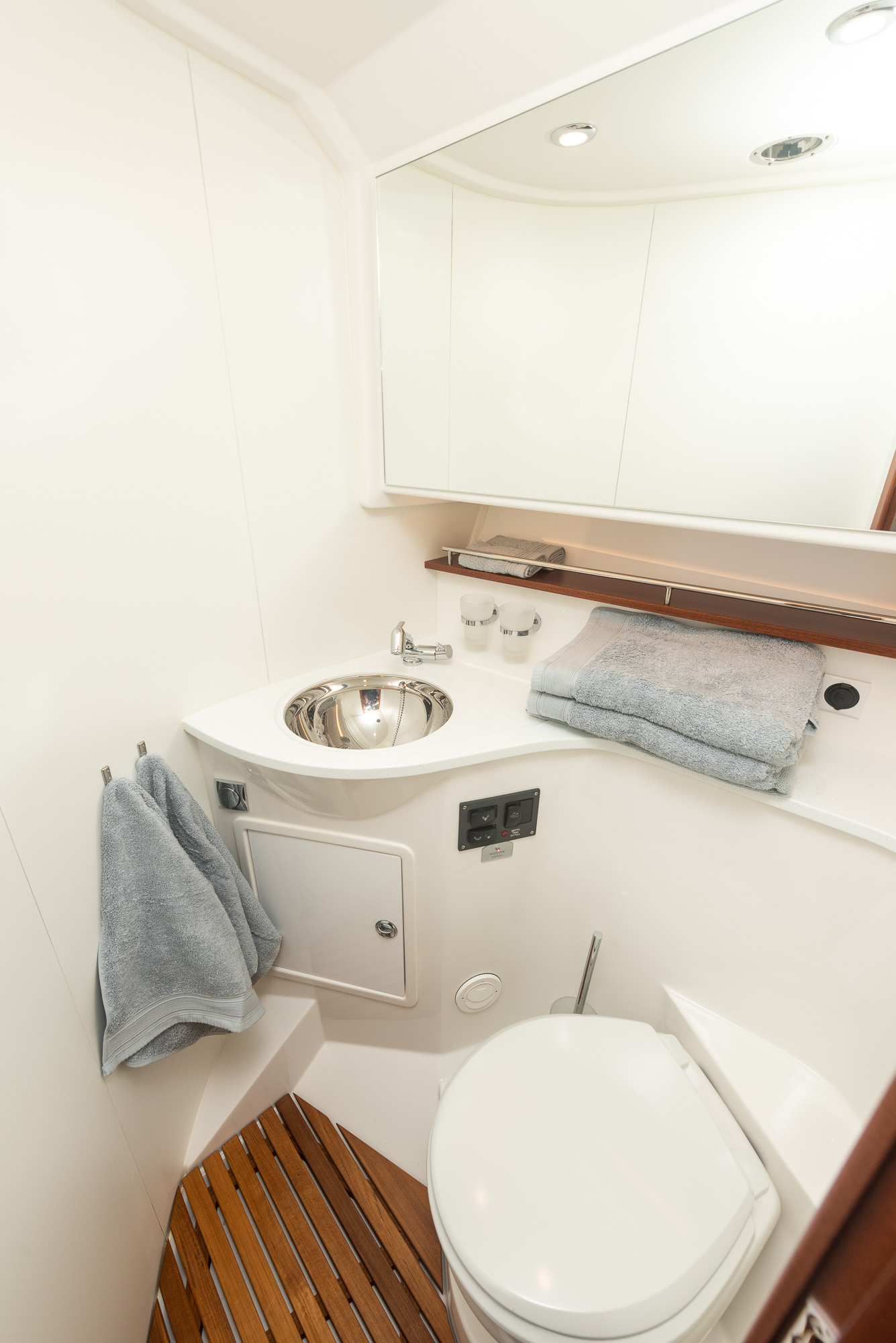

- Toilet room and WC
- Ceramic gas hob
- Windshield washer
- Cover, aft deck cushions
- Volvo Penta Trip computer
BOW & STERN THRUSTERS
The responsive bow and stern thrusters will have you docking like a pro with the epitome of convenience.

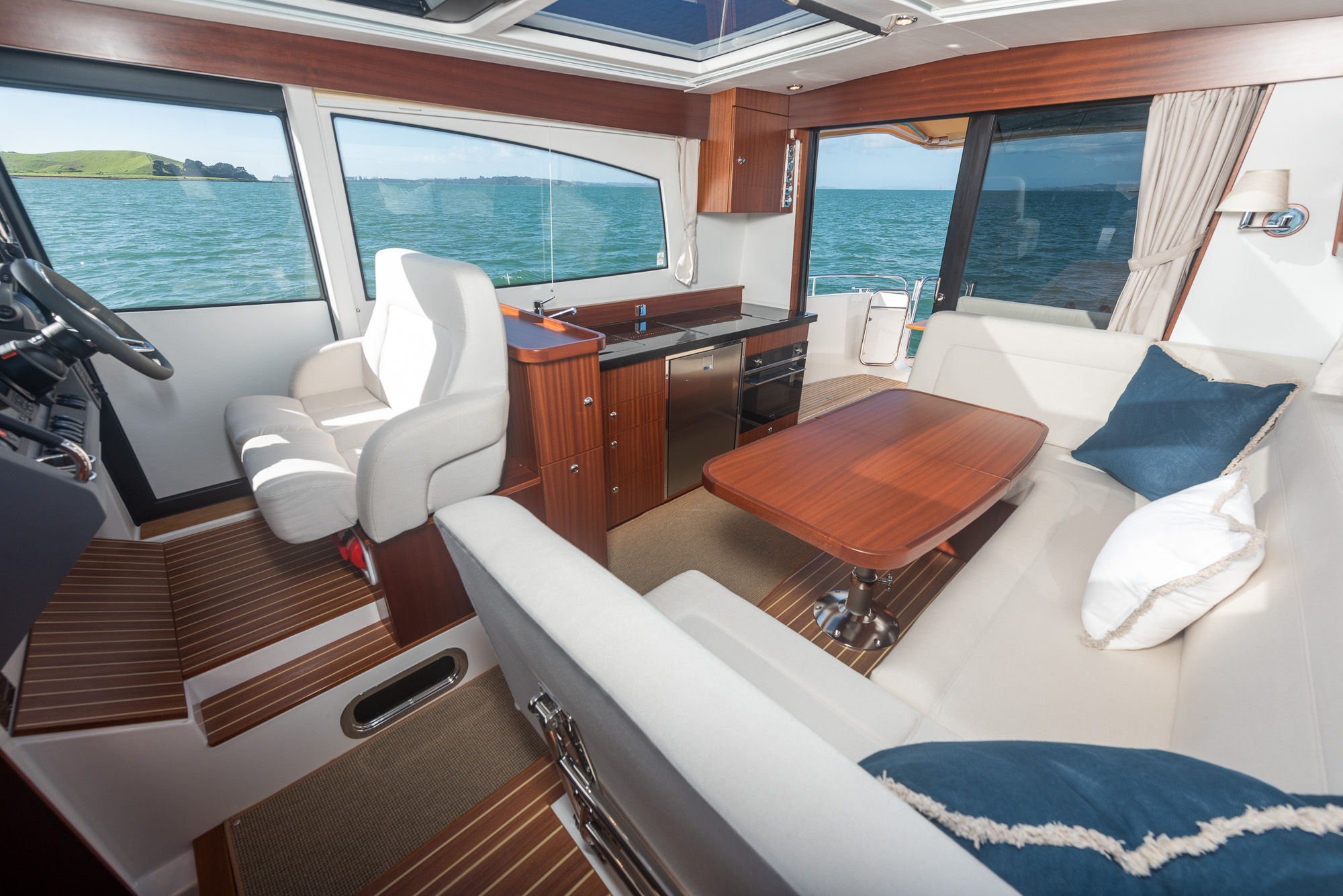

OFF-SET SALOON

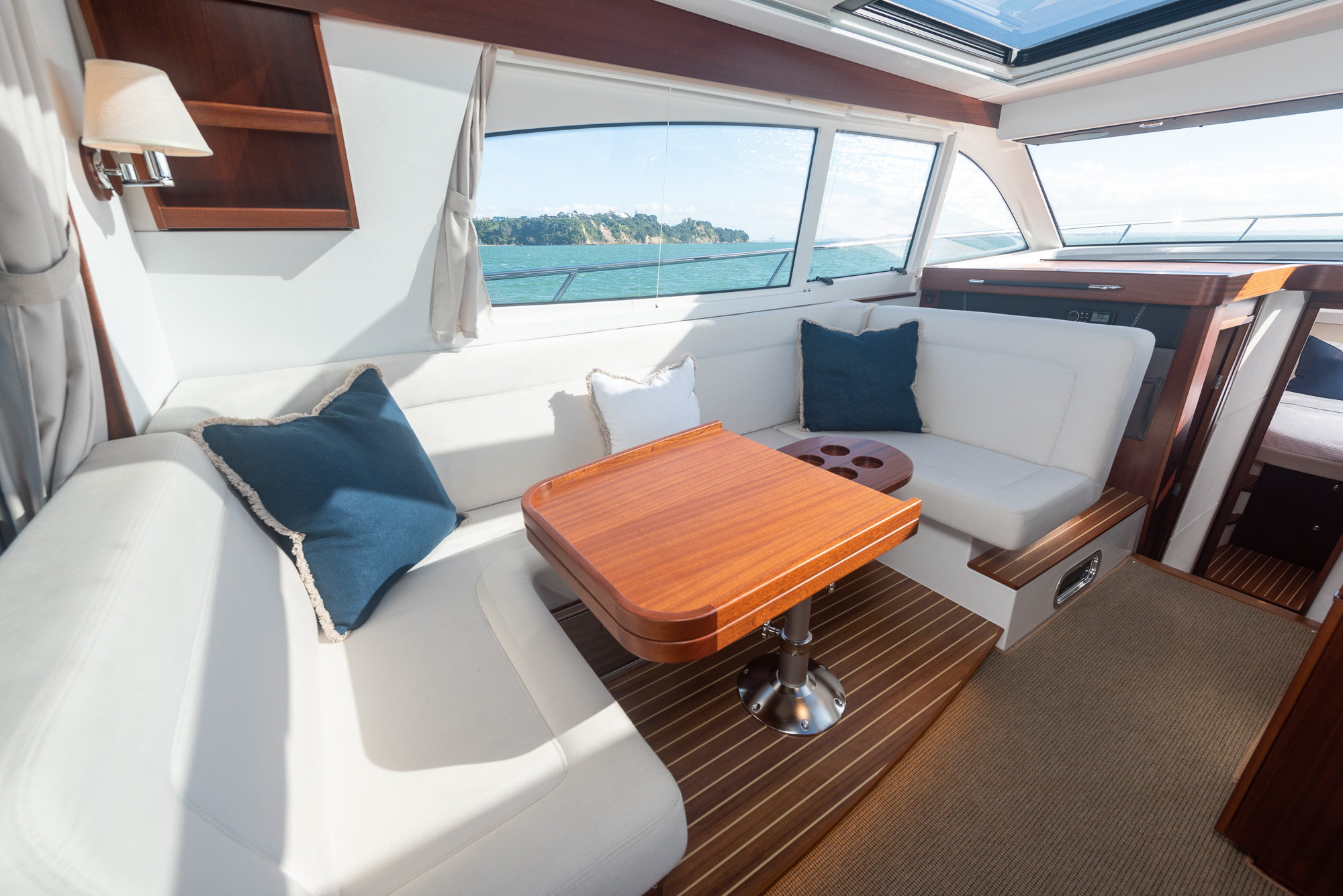

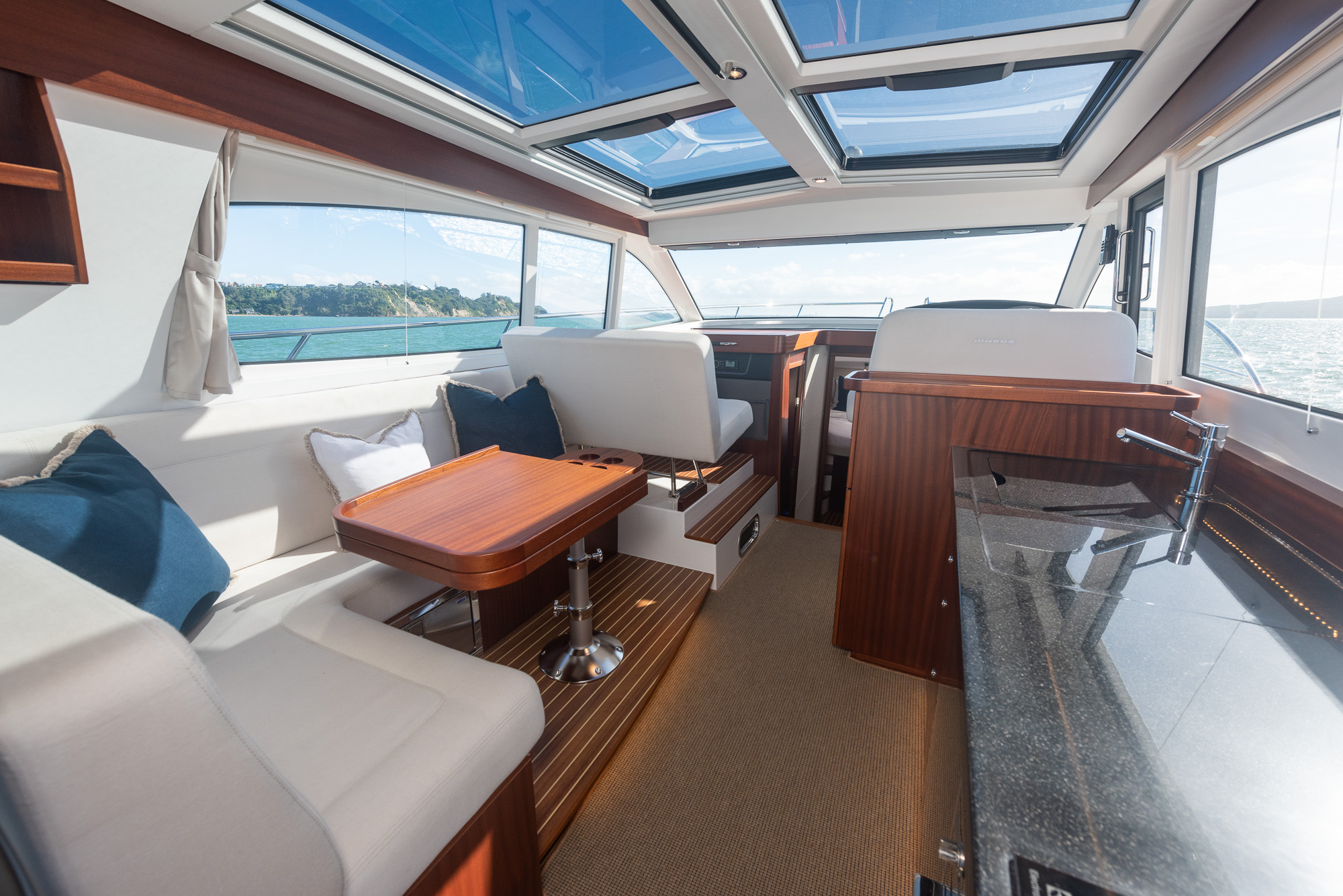

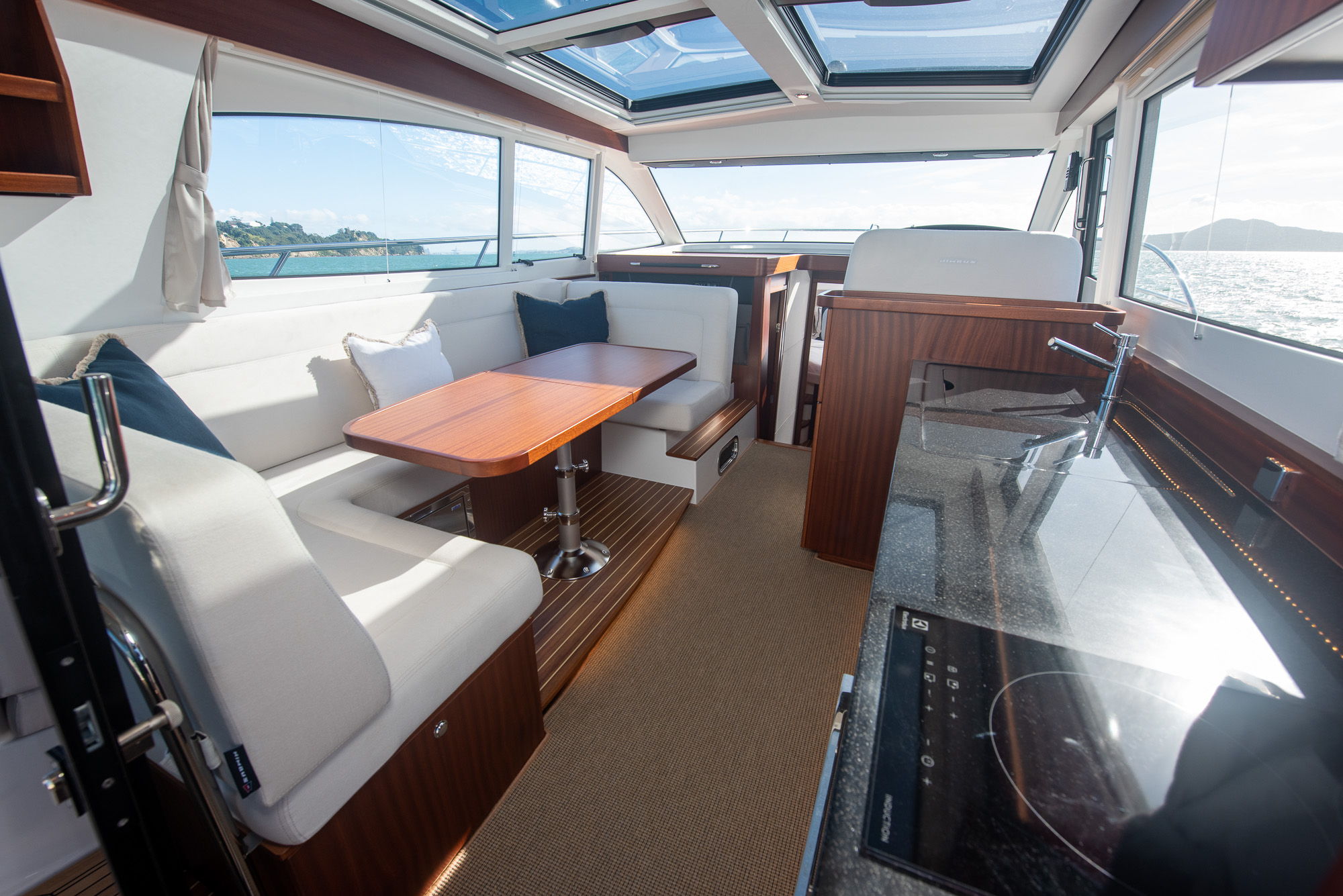

The saloon is offset to port which gives you a comfortable and safe walkway up the starboard side of the boat without compromising your valuable saloon space
Shaft Drive
Shaft drives offer reliability and are known for their robustness and long-term durability. With less gear sitting in the water they offer a lower maintenance alternative to other propulsion systems
CATEGORY B RATING
Nobody likes going out in rough weather but we all want to know that our boat can handle any condition. With its category B rating, the N-405 is rated to handle 4m seas and 40-knot winds, so you can boat with confidence.
